MATCH UP C42MB-FRT.3 - 4" 2-Way PnP Compo Speaker Set, MERCEDES Type 3 | 4Ω
MATCH UP C42MB-FRT.3 - 4" 2-Way PnP Compo Speaker Set, MERCEDES Type 3 | 4Ω
UP C42MB-FRT.3
Couldn't load pickup availability
Premium cars deserve premium sound – the basic speaker setup in Mercedes vehicles does not meet the expectations of ambitious music lovers in many cases. For all those, the tailor-made MATCH UPGRADE speaker systems offer the perfect alternative that opens new horizons of sound.

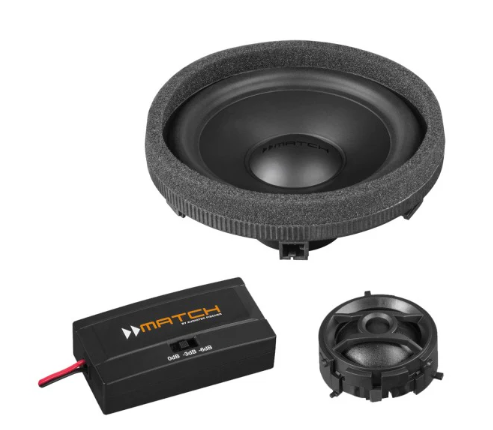

The 2-way component system UP C42MB-FRT.3 provides much better precision and dynamics across the whole frequency range combined with a fantastic treble resolution thanks to the 25 mm silk dome tweeter. Additionally its level is adjustable in three steps according to personal listening preferences.
Especially in combination with one of our DSP amplifiers these speakers reveal their full potential in respect of dynamics.
Features
- Optimised sound characteristics for Mercedes vehicles for a spectacular sound in combination with significantly increased power handling
- Exclusively developed baskets and car-specific connectors for Mercedes vehicles for easiest installation
- Separate crossover with 6 dB slope and 3-stage tweeter level adjustment
- Perfectly combinable with further MATCH UPGRADE components – e.g. DSP amplifier
Product parameters
- Size: 100mm | 4"
- Driver Power | Watts RMS: 60
- Voice Coil x Impedance: 1 x 4Ω
- Type: Component | 2-Way
- Sensitivity 2.83V/1m | dB: 92
- Installation Depth | mm: 36
- Car Specific: Mercedes
Specifications
| Power handling RMS / Max. | 60 / 120 Watts |
| Frequency response | 80 Hz - 25,000 Hz |
| Impedance | 4 Ω |
| Sensitivity | 92 dB @ 2.83V / 1m 89 dB @ 1W / 1m |
| Cone material | TW: Coated silk dome M: - W: Coated paper |
| Crossover | Separate, 6 dB slope with 3-stage tweeter level adjustment |
| Outer diameter | TW: 43.1 mm / 1.70" M: - W: 121 mm / 4.76" |
| Installation diameter | TW: 39 mm / 1.54" M: - W: 121 mm / 4.76" |
| Installation depth | TW: 23.7 mm / 0.93" M: - W: 35.8 mm / 1.41" |
Compatibility
| Model | Model type |
Series | Model year | Installation place |
| C | Convertible Coupe Sedan T-model |
A206 C206 W206 S206 |
From 2021 From 2021 From 2021 From 2021 |
Front door* / Rear door* Front door* / Rear door* Front door / Rear door* Front door / Rear door* |
Further information about the vehicle compatibility can be found in our Upgrade Finder.
* For installation the cover incl. tweeter mounting fixture of the Mercedes Burmester sound system is required.
Status: May 2019

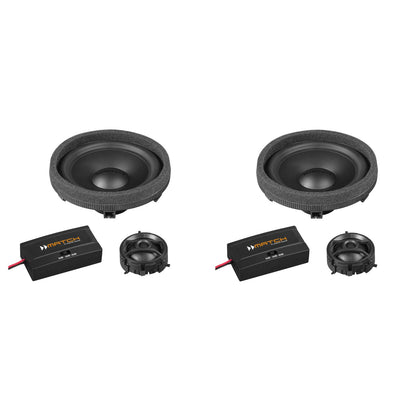

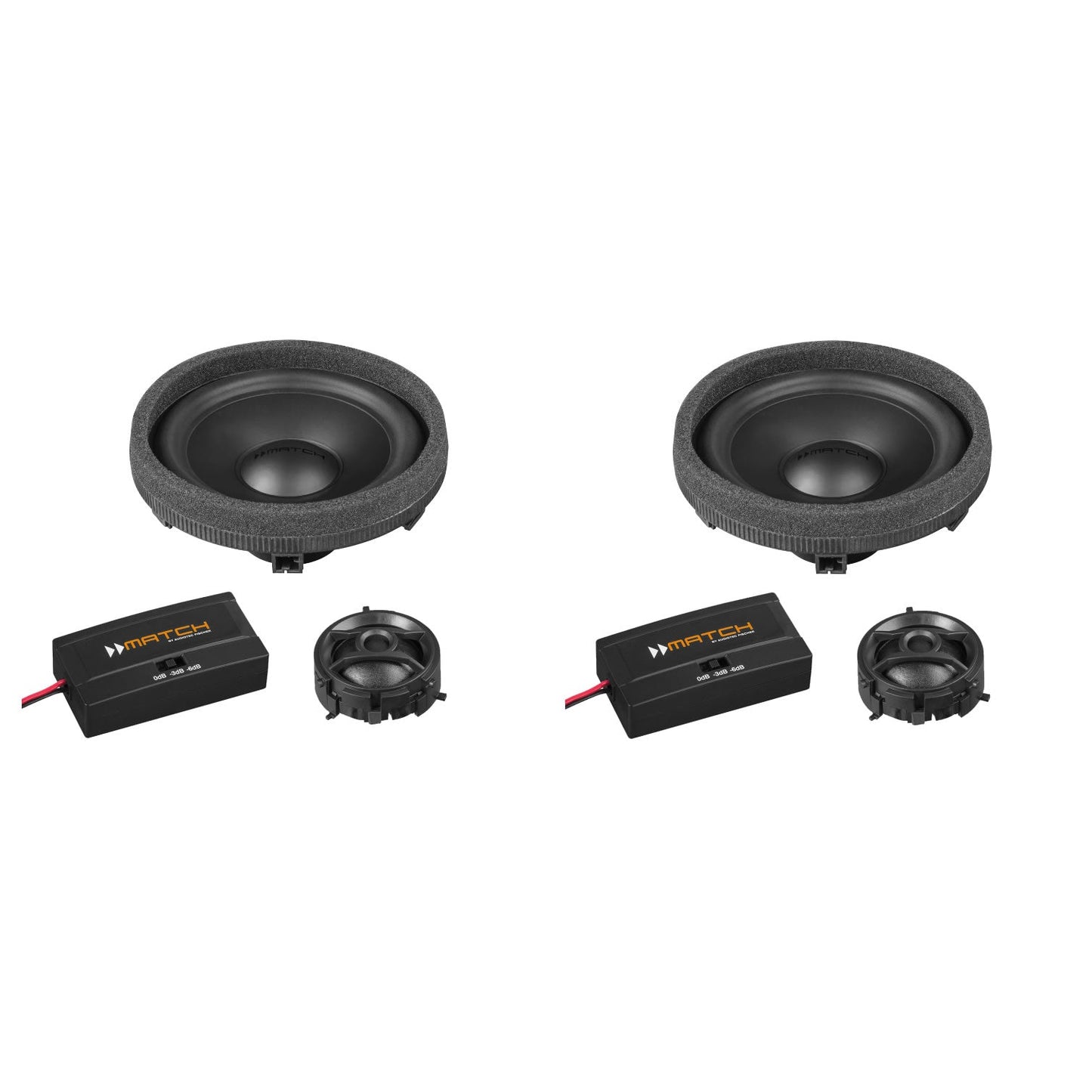

What's included
- 2 x Tweeter MATCH UP S1MB-FRT

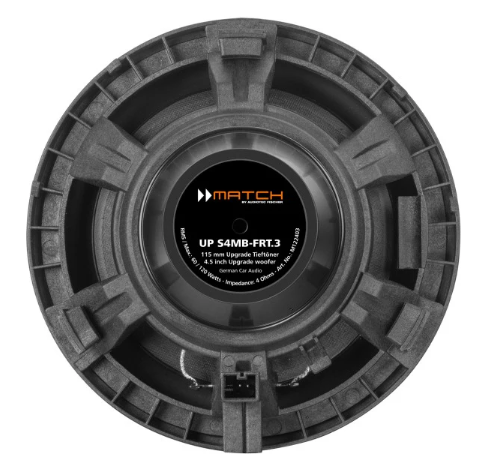

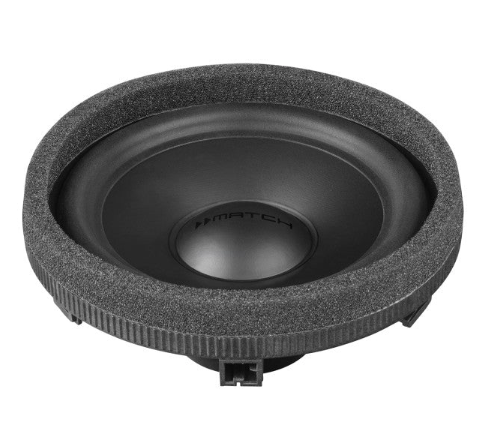

- 2 x Midwoofer MATCH UP S4MB-FRT.3
- 2 x Crossover
- 1 x Instruction manual
