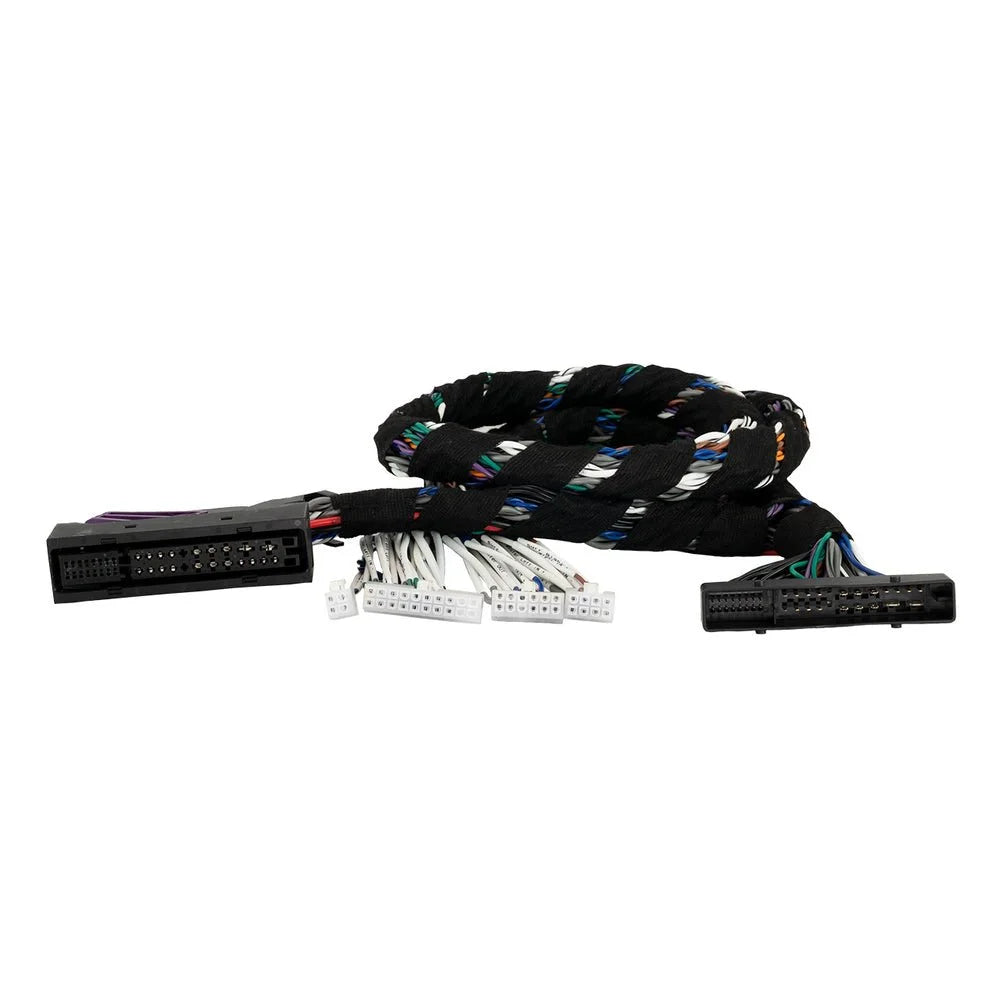

MATCH PP-MB 1.9MBUX-BUR - Harness For MATCH UP 10DSP Amplifier to fit Mercedes w/ Burmester

The 9-channel UPGRADE cable harness PP-MB 1.9MBUX-BUR enables an easy connection of a MATCH UP 10DSP amplifier with integrated Extension Card MEC ANALOG IN to selected Mercedes vehicles with Burmester sound system and MBUX Radio (Mercedes-Benz User Experience).

Features

• Plug & Play connectors for an easy connection of a MATCH UP 10DSP amplifier with integrated MEC ANALOG IN module
• MBUX-connection for connecting Mercedes radios with Mercedes-Benz User Experience (MBUX)
• Cable length 1.00 meter

Technical data

Cable length  = 1.00 Meter

Connections

• 1 x 20-pole MOLEX plug for the connection of the System Connectors input of the UP 10DSP
• 1 x 8-pole MOLEX plug for the connection of the high-level inputs E - H of the UP 10DSP
• 1 x 12-pole MOLEX plug for the connection of speaker outputs E - J of the UP 10DSP
• 1 x 4-pole MOLEX plug for the connection of the MEC ANALOG IN module
• 1 x 38-pole Mercedes system jacket
• 1 x 38-pole Mercedes system plug

Compatibility

• For connection of the MATCH UP 10DSP with ANALOG IN Extension Card
• Suitable for Mercedes vehicles with Mercedes-Benz User Experience (MBUX)
• Compatible with factory-installed Burmester sound systems with MBUX radio

Scope of delivery

• 1 x Plug and Play cable harness PP-MB 1.9MBUX-BUR
