MATCH MEC ANALOG IN - MATCH DSP Extension Card With Analog In

The MATCH Extension Card ANALOG IN extends MATCH products with two additional analog input channels. For example, the module allows to:

• provide MATCH DSP amplifiers with a low-level signal
• upgrade OEM premium sound systems which require additional high-level inputs
• connect additional analog signal sources such as a TV or smartphone

Of course, the high-level input provides our proprietary ADEP.3-circuit, the Auto Remote function as well as an adjustable input sensitivity from 1.5 to 30 Volts. Just as the high-level input the 3.5 mm low-level stereo input offers an adjustable input sensitivity. The adjustment range is from 0.5 to 8 Volts. The module will be delivered with a device-specific side panel.

Features

• Extends the amplifier by two additional analog input channels
• High-level input with ADEP.3 circuit, Auto Remote switch and an adjustable input voltage from 1.5 to 30 Volts
• Low-level stereo line input via 3.5 mm jack with an adjustable input voltage range from 0.5 to 8 Volts
• Inputs can be freely configured via the DSP PC-Tool as additional Main Inputs or as an AUX source
• Device-specific side panel included in delivery

Product parameters

• Application: For Amplifiers / DSP
• Type: Extension Card or Module

Specifications

Compatibility

• 1 x MEC ANALOG IN module
• 1 x Device-specific side panel
• 1 x Instruction manual

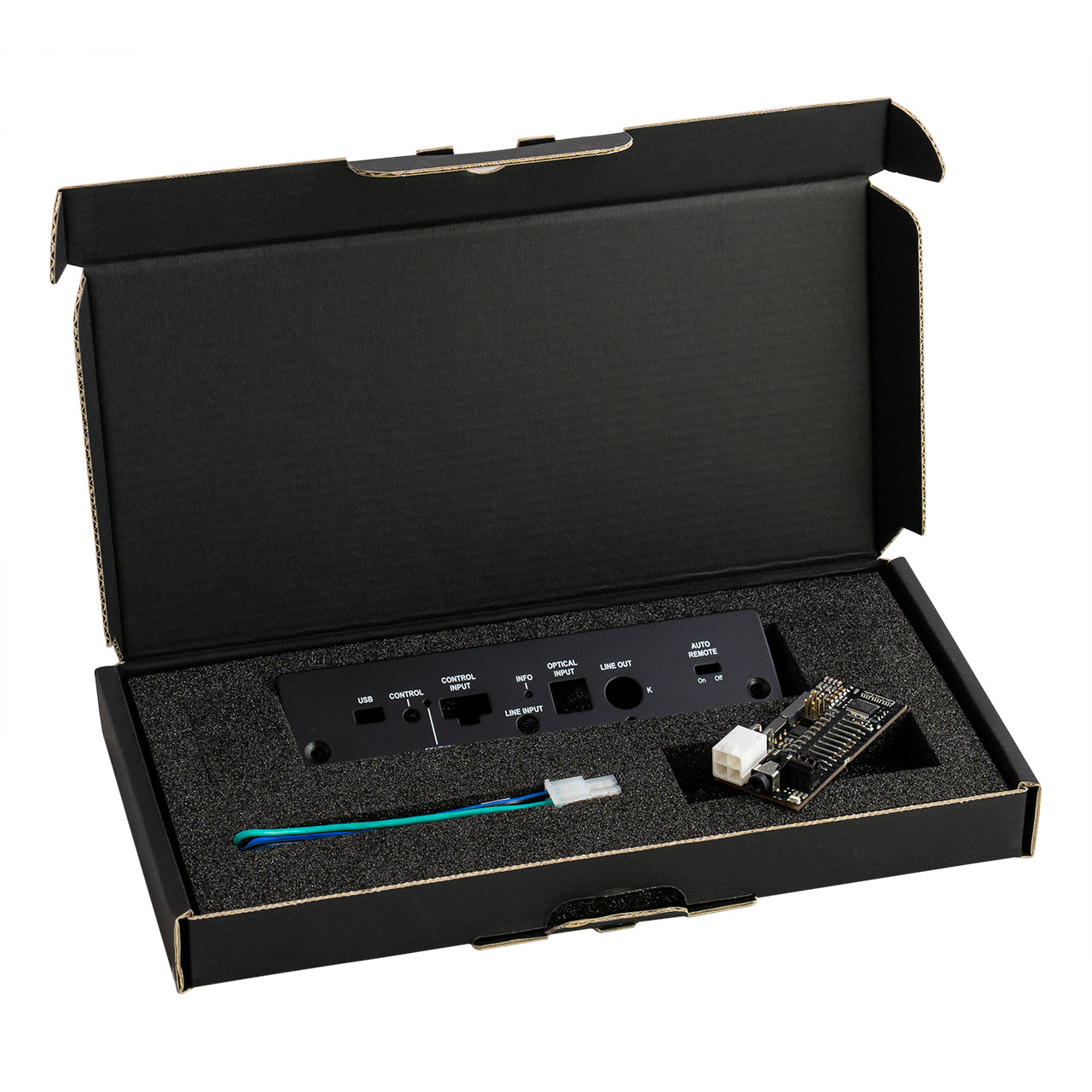

What's included

• 1 x MEC ANALOG IN module
• 1 x Device-specific side panel
• 1 x Instruction manual
