ETON MA2 - 2 Channel Amplifier - 2 x 190 RMS 4 Ohm

The MA amplifier series delivers outstanding performance in an ultra-compact, timeless design. Housed in a high-quality die-cast aluminium chassis with a refined gunmetal finish, these amplifiers offer excellent heat dissipation to achieve maximum power from a minimal footprint.

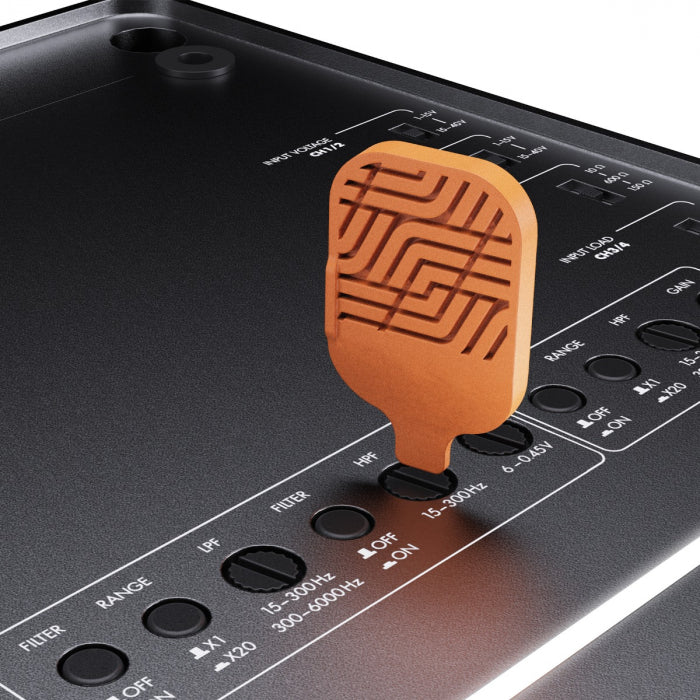

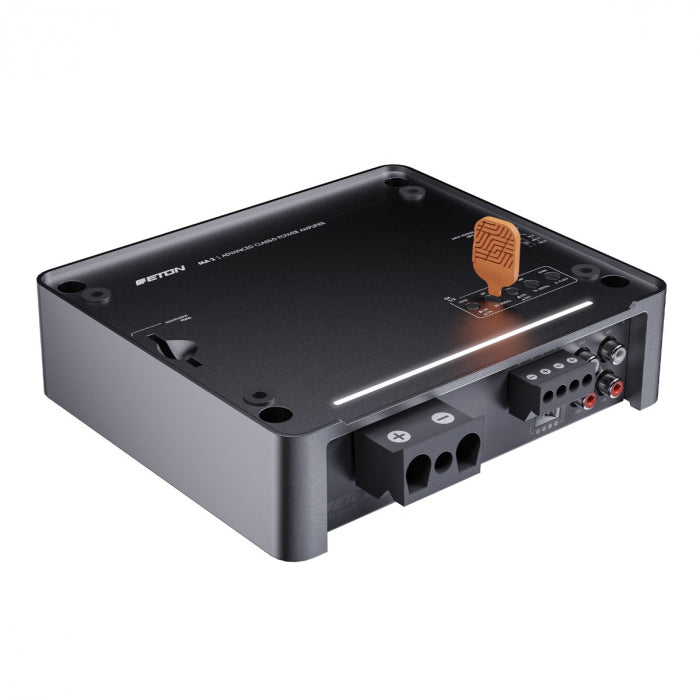

A removable, 180° rotatable aluminium top cover conceals a newly developed LED status light bar, integrated adjustment tool, and flexible tuning options including active high- and low-pass filters, gain control, and adjustable high-level input voltage and impedance. Advanced Class-D technology ensures high efficiency, very low THD+N distortion, and impressive output.

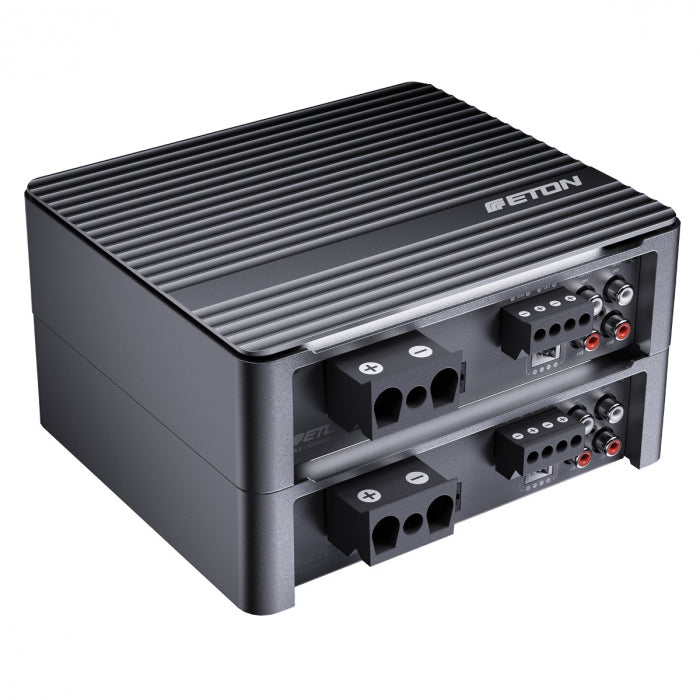

Designed for installation flexibility, the MA series features a stackable chassis, detachable connection plugs, variable mounting feet, hidden mounting points, EPS load capability, and start/stop vehicle compatibility.

Power Output

• 2 × 190 W RMS @ 4 Ω
• 2 × 310 W RMS @ 2 Ω
• 1 × 640 W RMS @ 4 Ω bridged

Specifications

• Signal-to-noise ratio: 83.5 dB
• Damping factor @ 4 Ω: >185
• THD+N: 0.005% @ 10 W / 1 kHz
• Active filters (CH 1/2): HP & LP 15–300 Hz
• Gain range: 0.45 – 6 V
• High-level input voltage: 1–15 V / 15–40 V
• Inputs: 2 × high-level, 2 × RCA
• Dimensions (L × W × H): 184 × 160 × 51 mm
