KICKER KEY500.1 - Smart Mono Amplifier (bass revealer/processor) - 500 RMS

The KICKER KEY500.1 is a compact mono subwoofer amplifier with integrated AI-driven DSP, designed to deliver powerful, accurate bass while automatically correcting factory audio limitations. By intelligently analysing the incoming signal, the KEY500.1 restores missing low frequencies and smooths uneven bass response — all without the need for complex tuning.

Perfect for factory or aftermarket systems, the KEY500.1 provides clean, controlled bass output in a wide range of modern vehicles.

Automatic Bass EQ & Signal Correction

Using KICKER’s supplied test tones, the KEY500.1 automatically analyses the audio signal being fed into the amplifier. Once analysed, the built-in DSP corrects peaks and restores low-frequency information commonly lost in factory systems.

The result is a clean, even bass response achieved in moments — no laptops, tuning software, or manual EQ required.

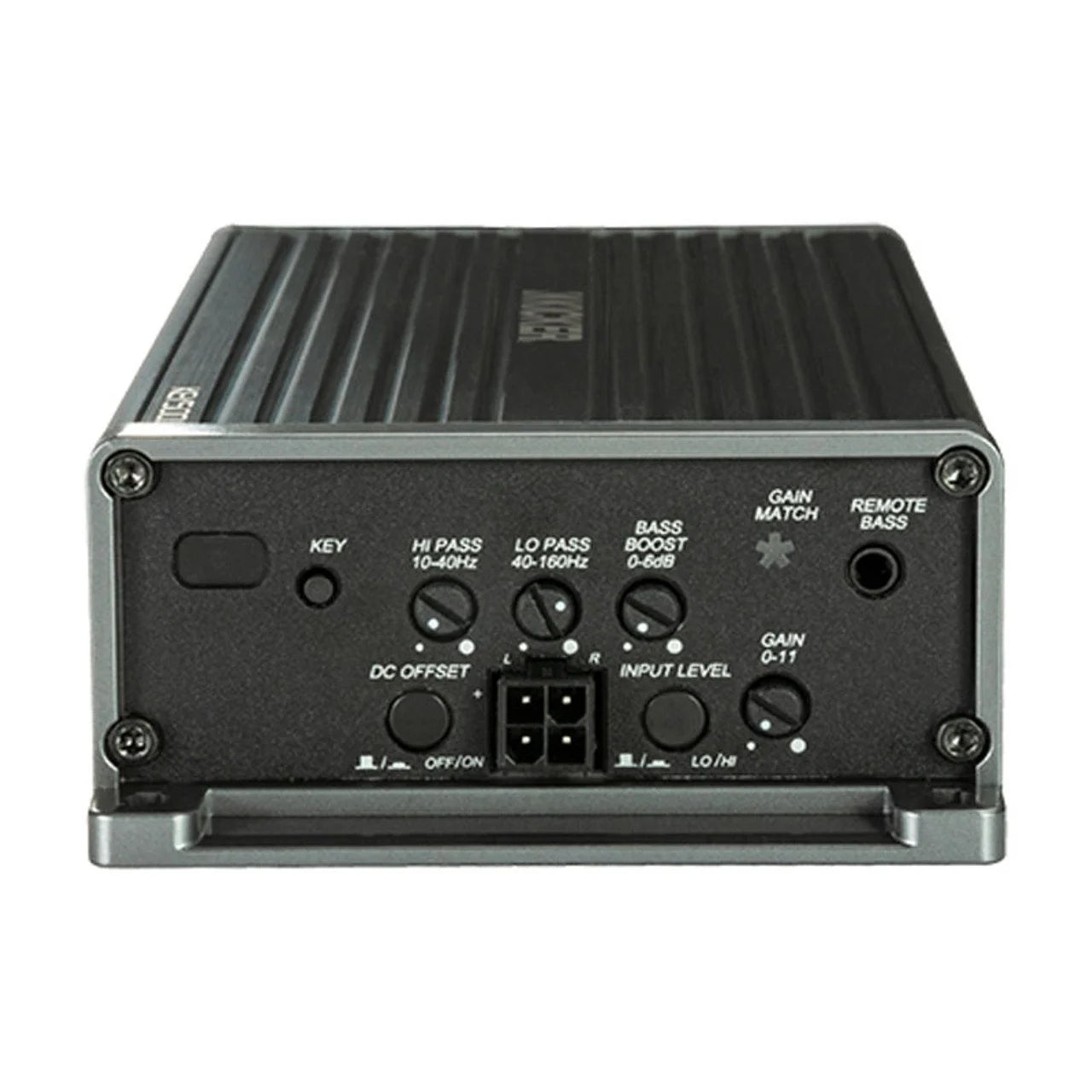

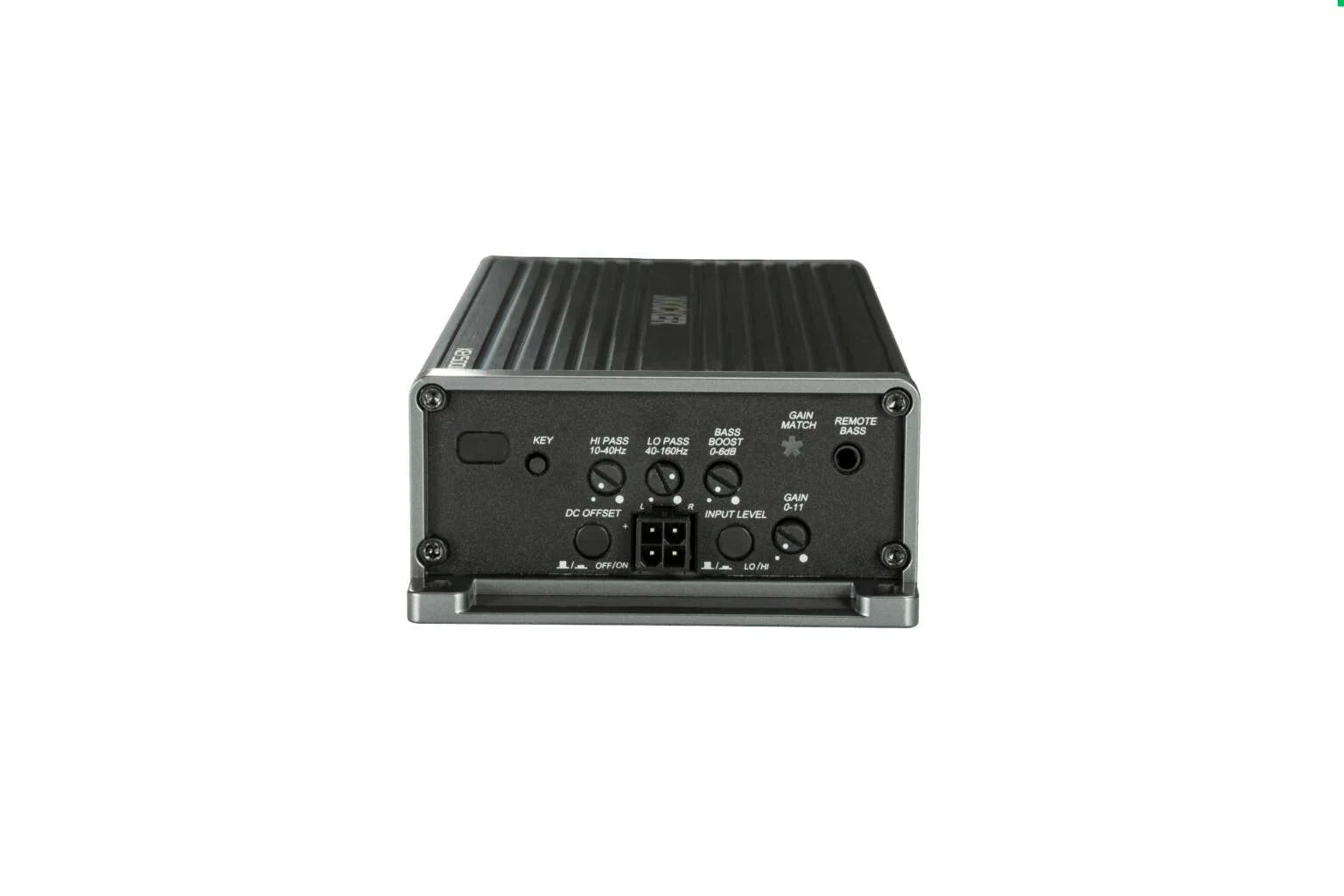

Total Control Over Your Bass

Fine-tune your subwoofer system with onboard controls designed for precision and flexibility:

• 24dB subsonic filter
• 24dB low-pass crossover
• Adjustable bass boost
• Gain control

These features allow seamless integration with a wide range of subwoofers and enclosures.

Designed for Modern Vehicles

The KEY500.1 features FIT2+™ (Fail-Safe Integration Technology 2 PLUS), providing near-universal compatibility with factory and aftermarket head units. An industry-leading design allows the amplifier to accept factory input signals up to 40 volts (400 watts), making it ideal for today’s high-power OEM systems.

Compatible with almost every vehicle on the road, the KEY500.1 is a true plug-and-play bass solution.

Power Output

• 500W RMS @ 1 Ohm (Mono)
• 300W RMS @ 2 Ohm (Mono)
• 150W RMS @ 4 Ohm (Mono)

Specifications

• Type: Mono Subwoofer Amplifier with AI DSP
• Frequency Response: 10–160 Hz
• Input Sensitivity:
  • High-level: 1V – 40V
  • Low-level: 125mV – 5V
• Signal-to-Noise Ratio: >90 dB (A-weighted, referenced to rated power)
• Crossover Controls:
• Variable Low-Pass: 40–160 Hz
• Variable High-Pass (Subsonic): 10–40 Hz
• Dimensions (H × W × L):
  • Inches: 1-11/16 × 4-1/8 × 8-1/8
  • Metric: 4.3 × 9.2 × 20.7 cm
