HELIX URC.3 - Remote Control For Match & Helix DSP/Amps with Control Input

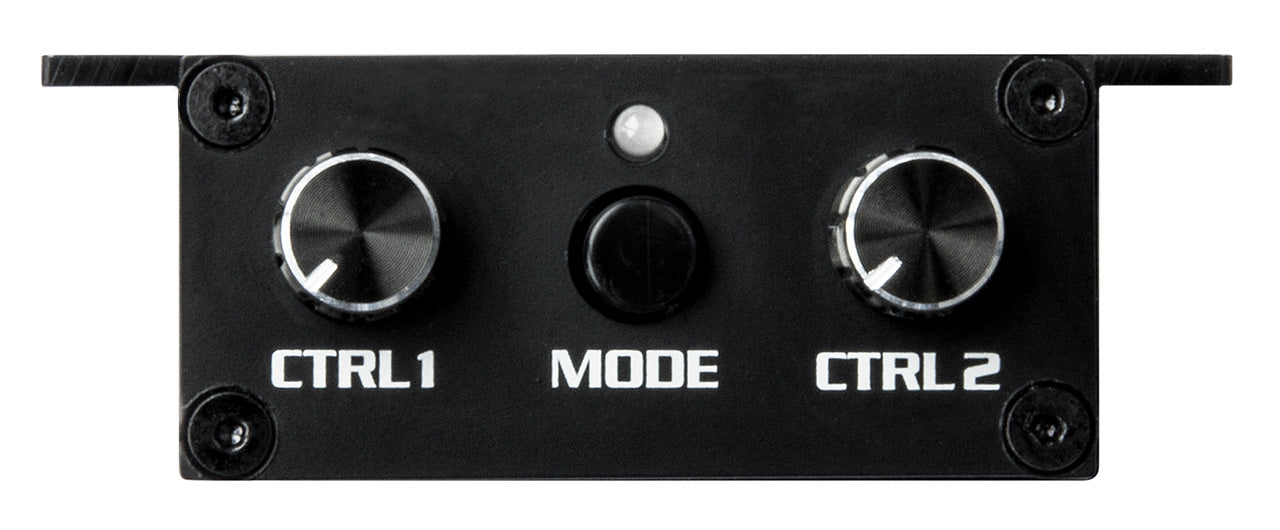

The universal cable remote control URC.3 allows controlling different functions such as subwoofer volume or HEC / MEC / AUX volume of BRAX, HELIX and MATCH DSP products. It consists of two rotary knobs and a switch, all of which can be easily defined from our DSP PC-Tool suite. The specific configuration options for each product can be found in the "Device configuration menu” (DCM) software package.

Features

• CONTROL I and CONTROL II (CTRL): Various functions can be selected in the DSP PC-Tool Software, e.g. controlling the master volume, controlling the subwoofer volume, controlling the HEC / MEC / AUX volume etc.
• MODE: Various functions can be selected in the DSP PC-Tool Software, e.g. activating the digital input, activating the HEC / MEC / AUX input, switching between two DSP-setups, deactivating all sound optimising features of the DSP for demonstration purposes etc.
• STATUS LED: The LED shows the status of the MODE switch
• 17’ / 5.2 m connection cable
• Mounting material included

Explanation

Control I & Control II functionalities:

Master Volume = controlling the master volume
Subwoofer Volume = controlling the subwoofer volume
Digital Volume = controlling the volume of the digital input
HEC / MEC / AUX Volume = controlling the volume of the HEC / MEC / AUX input
Rear Attenuation = controlling the volume of the rear speakers. Only in combination with Virtual Channel Processing (VCP)

Mode Switch functionalities:

Setup Switch = switching between DSP memory 1 and DSP memory 2
Digital In = switching between the analog and digital input
HEC / MEC / AUX In = switching between the analog and HEC / MEC / AUX input
Demo Mode = deactivating all sound optimising features of the DSP for demonstration
Opto Mode = switching between the analog and optical input

Product parameters

• Application: For Amplifiers / DSP
• Type: Remote Control

Specifications

What's included

• 1 x Cable remote control URC.3
• 1 x Connection cable 17’ / 5.2 m
• 1 x Mounting material
