HELIX DIRECTOR Control Input - Display Remote Control for DSP/Amp w/ Control Input

DIRECTOR Control Input

In stock
$675.00
$675.00

Question about this product?

We're happy to help.

Everything under control!

With the new remote control DIRECTOR, you lead from the front!

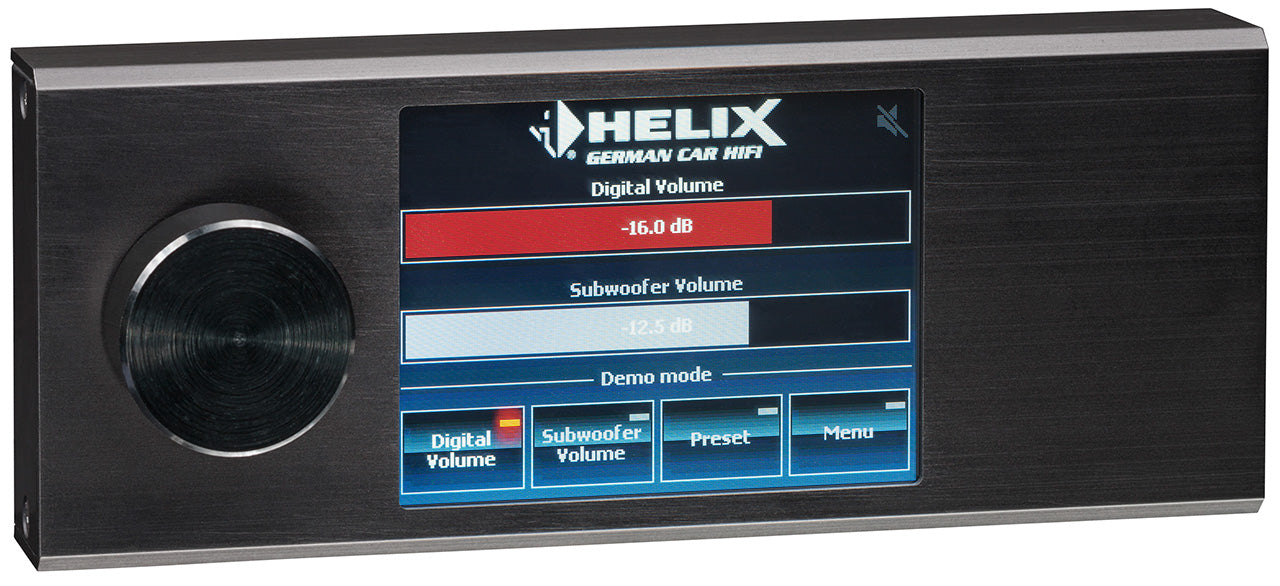

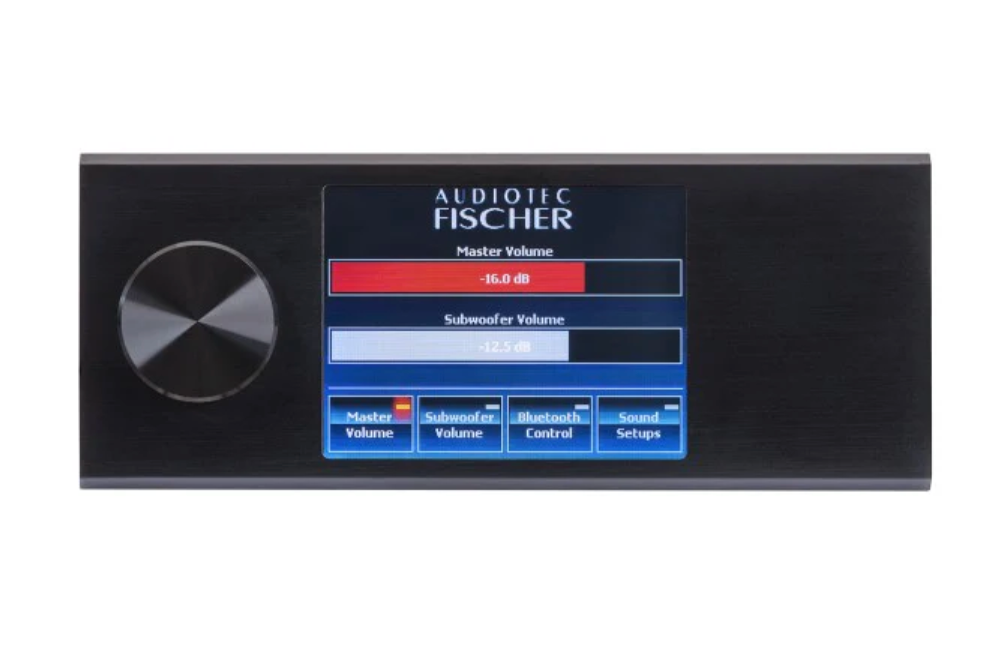

The 2.8” / 7 cm full colour touchscreen display and the intuitive menu navigation allow easy handling of many features – for example:

  • Source selection
  • Volume control of all sources
  • Volume control of the subwoofer
  • Control and configuration of the HEC BT module
  • Switching between sound setups.

Furthermore it provides sufficient memory for 20 additional sound setups and comes with a USB connector allowing straight access to your DSP device via the DIRECTOR - a big relief if you want to tweak your configuration while your processor/amplifier is hidden somewhere in the trunk.

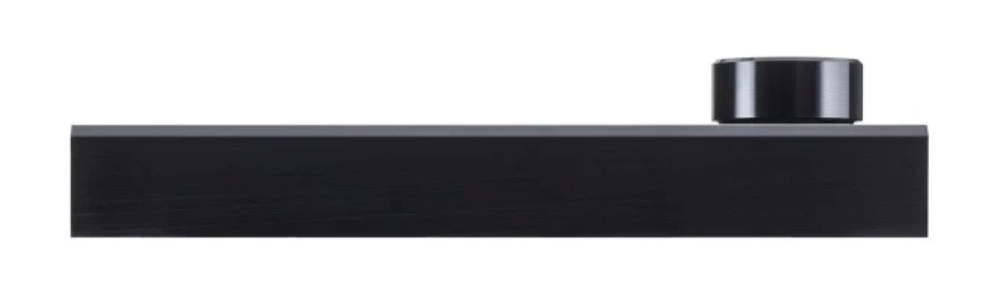

The high-resolution, full colour touchscreen display is housed in what was solid block of aluminium.

The DIRECTOR is compatible with all DSP products which are supported by DSP PC-Tool Version 3 and higher.

Features
  • 2.8“ / 7 cm touchscreen display and powerful ARM processor
  • Easy handling of the main functions
    • Volume control of all sources
    • Volume control of the subwoofer
    • Source selection
    • Control of the HEC BT module (Bluetooth® Connect functions: pairing, reconnect, disconnect / Bluetooth® Control functions: track forward/back, play/pause)
    • Switching between sound setups
  • Memory locations for 20 additional sound setups (only devices without ACO platform)
  • Automatic dimming function of the display
  • Display rotation adjustable to 180°
  • USB Paththrough - to connect your computer to the DSP
  • Compatible with all DSP products which are supported by DSP PC-Tool Version 3 and higher
  • Exclusive solid aluminium housing
  • 17’ / 5.2 m connection cable included
Product parameters
  • Application: For Amplifiers / DSP
  • Type: Remote Control
Specifications
Dimensions (H x W x D)

53.50 x 135 x 18 mm;
2.07 x 5.32 x 0.71"
Compatibility
  DIRECTOR for Control Input
BRAX DSP
NOX4 DSP*
HELIX DSP ULTRA
DSP PRO MK3**
DSP PRO (MK1/MK2)
DSP.3S**
DSP.3
DSP.2
DSP MINI MK2**
DSP MINI
DSP
P SIX DSP ULTIMATE** (not in 24V applications)
P SIX DSP (MK1 / MK2)
V TWELVE DSP
V EIGHT DSP (MK1 / MK2)
M SIX DSP
M FOUR DSP
MATCH

DSP
UP 10DSP**
UP 8DSP**
UP 7BMW
UP 7DSP
M 5.4DSP**
M 5DSP (MK1 / MK2)
PP 86DSP
PP 82DSP
PP 62DSP
PP 52DSP

* An additional adaptor (Art.No. H424481) is required for connecting the remote control.
** The Control Input-to-SCP adaptor supplied with the DSP product is required for connecting the remote control.

What's included
  • 1 x Remote control DIRECTOR
  • 1 x Connection cable 17' / 5.2 m
  • 1 x Instruction manual
