HELIX CWK FX.M-550CC - FlexMount X-over -> Midrange | Wire Kit, 55cm

The CWK FX.M-550CC connects the COMPOSE i7 or i3 midrange speaker M100FM-S3 with a crossover like the Ci7 FX-UNI.2 and Ci3 FX-UNI.2. The cable can also be used for universal connection to speaker cables. Innovative connection technologies such as FlexConnect and COMPOSE Connect minimise connection errors and ensure maximum operational safety to automotive standards.

Features

• Connection cable for connecting the COMPOSE i7 or i3 midrange driver M100FM-S3 with an i7 or i3 universal crossover with COMPOSE Connect connection

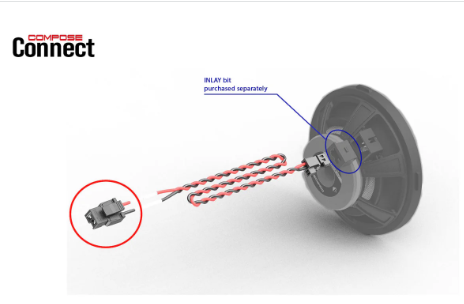

• COMPOSE Connect & FlexConnect connectors – Sophisticated automotive standard connectors for safe, reverse polarity protected connection
• In active applications also usable as universal connection cable for all COMPOSE speakers with FlexConnect terminal

Product parameters

• Application: For Speakers
• Type: Compose Wire Kit | CWK

Specifications

Compatibility

Passive application with universal i7 crossover:

• Ci7 M100FM-S3 with Ci7 FX-UNI.2

Passive application with universal i3 crossover:

• Ci3 M100FM-S3 with Ci3 FX-UNI.2

Active application without passive crossover:

• Ci7 M100FM-S3
• Ci3 M100FM-S3
• Ci3 C100.2FM-S3

What's included

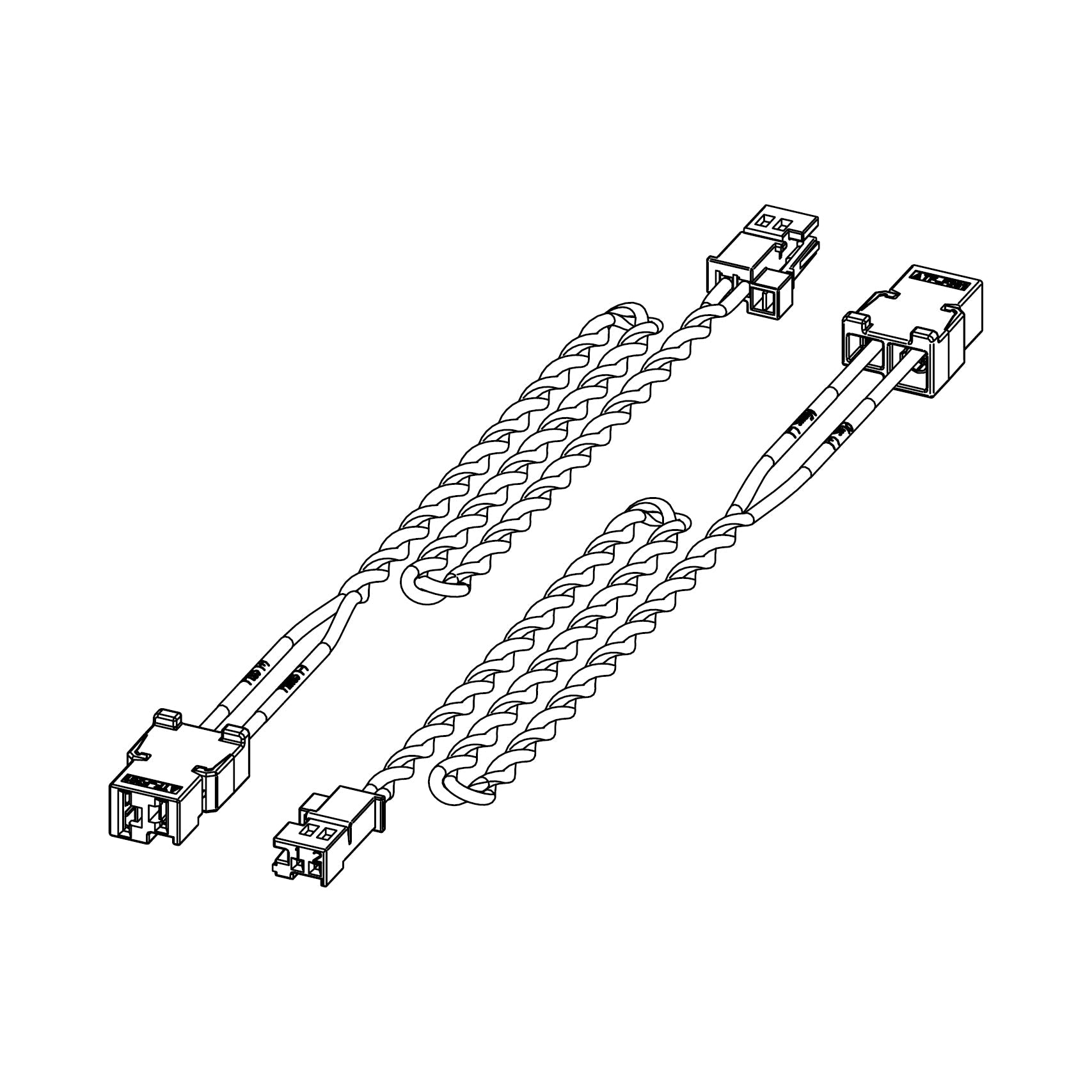

• 2 x COMPOSE Connect to FlexConnect connection cable
