HELIX Ci3 M100FM-S3 - 4" Midrange Speker Pair, FlexMount | 3Ω

HELIX Ci3 M100FM-S3 - 4" Midrange Speker Pair, FlexMount | 3Ω

COMPOSE Ci3 M100FM-S3

In stock
$325.00
$325.00

    HELIX COMPOSE. The perfect speaker for any composition.

    Born out of the increasingly demanding challenges of modern automobile technology and the HELIX-typical pursuit of intelligent solutions, we made the progressive redesign of proven universal speaker systems our mission. The result: our innovative HELIX COMPOSE platform that, according to the motto "developed inside the vehicle, for the vehicle", combines classic universal speakers with the advantages of vehicle-specific systems. Innovative materials and the latest technologies paired with smart, practical engineering - the best of both worlds in harmony: high efficiency, fantastic sound quality and enormous dynamics that fit in any vehicle. HELIX COMPOSE - universal speakers evolved.Read more info here.

    Features
    • 4” / 100 mm performance midrange speaker which combines outstanding sound quality with versatile physical integration options
    • High efficiency and 3 Ohms technology for maximized power output of the amplifier
    • Unique Cenosphere coated paper cone for precise and detailed sound reproduction
    • High-tech polymer composite basket reinforced with glass beads for enormous rigidity and minimized ringing
    • Specially shaped rubber surround for high linear cone excursion
    • Polyurethane dustcap for optimized frequency response in the upper midrange area
    • 1” / 25 mm voice coil ensures high power handling

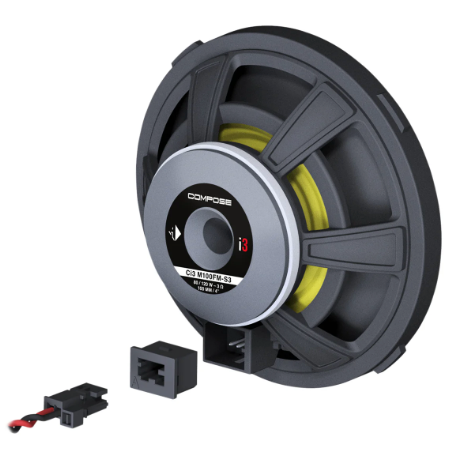

    • Automotive grade FlexConnect terminal for fast, secure and fail-safe connection
    • Shallow neodymium magnet system for low installation depth and high efficiency
    • Universal FlexMount100 mounting ring included in delivery
    • Designed for the optionally available car-specific FlexMount100 adaptors which allow an acoustically optimised and professional integration in the original mounting location of the vehicle
    Product parameters
    • Size: 100mm | 4"
    • Driver Power | Watts RMS: 80
    • Voice Coil x Impedance: 1 x 3Ω
    • Type: Mid Range
    • Sensitivity 2.83V/1m | dB: 91
    • Installation Depth | mm: 30
    Specifications
    Power handling RMS / max. P
    		 80 / 120 Watts
    Impedance  Z 3 Ω
    DC resistance  Re 3.0 Ω
    Frequency response   120 Hz - 6,000 Hz
    Resonance frequency  Fs 146 Hz
    Mechanical Q factor  Qms 4.49
    Electrical Q factor  Qes 1.02
    Total Q factor Qts 0.83
    Compliance Cms 280 µm/N
    Equivalent air volume Vas 1.1 L
    Force factor  B*I 3.4 Tm
    Sensitivity SPL 91 dB @ 2.83 V / 1m
    87 dB @ 1W / 1m
    Cone area  Sd 53 cm²
    Moving mass  Mms 4.3 g
    Cone material   Paper with Cenosphere coating
    Mechanical resistance  Rms 0.87 kg/s
    Voice coil diameter ø 25 mm
    Voice coil winding height   4.8 mm
    Max. linear excursion  Xmax +/- 2.0 mm
    Outer diameter ø 98 mm / 3.86"
    Outer diameter with universal mounting ring ø 104,5 mm / 4.11"
    Installation diameter ø 89 mm / 3.50"
    Installation depth   30 mm / 1.18"
    Features   FlexConnect terminal,
    powerful push-pull neodymium magnet system,
    FlexMount100


    Compatibility
    • FlexMount100
    • FlexConnect Inlays
    What's included
    • 2 x Ci3 M100FM-S3
    • 2 x Universal FlexMount100 (with standard 4-point mounting)
    • 2 x FlexConnect inlay A
    • 2 x Universal connection cable
    • 2 x Mounting material
