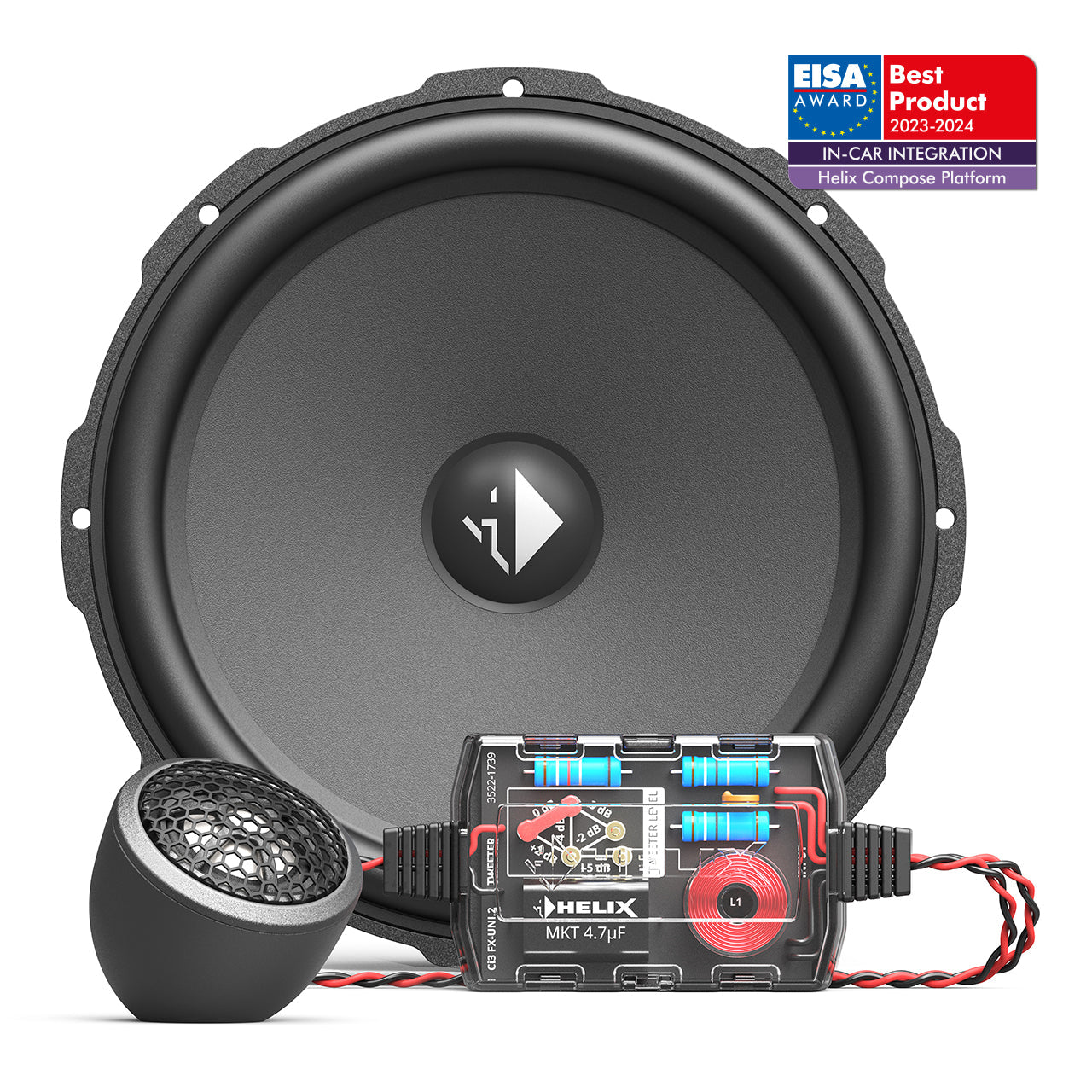

HELIX Ci3 K200.2FM-S3 - 8" 2-Way Component Speaker Set, FlexMount | 3Ω

HELIX Ci3 K200.2FM-S3 - 8" 2-Way Component Speaker Set, FlexMount | 3Ω

COMPOSE Ci3 K200.2FM-S3

In stock
$695.00
$695.00

    HELIX COMPOSE. The perfect speaker for any composition.

    Born out of the increasingly demanding challenges of modern automobile technology and the HELIX-typical pursuit of intelligent solutions, we made the progressive redesign of proven universal speaker systems our mission. The result: our innovative HELIX COMPOSE platform that, according to the motto "developed inside the vehicle, for the vehicle", combines classic universal speakers with the advantages of vehicle-specific systems. Innovative materials and the latest technologies paired with smart, practical engineering - the best of both worlds in harmony: high efficiency, fantastic sound quality and enormous dynamics that fit in any vehicle. HELIX COMPOSE – universal speakers evolved.

    Read more info here.

    Features
    • 2-way performance speaker kit which combines outstanding sound quality with versatile physical integration options
    • High efficiency and 3 Ohms technology for maximised power output of the amplifier
    • Smart, automotive grade connectors for fail-safe and secure installation – COMPOSE Connect & ProConnect
    • Tweeter
    • Woofer
    • Crossover
    • Designed for the optionally available car-specific FlexMount200 & FlexMount20 adaptors which allow an acoustically optimised and professional integration in the original mounting locations of the vehicle
    Product parameters
    • Size: 200mm | 8"
    • Driver Power | Watts RMS: 100
    • Voice Coil x Impedance: 1 x 3Ω
    • Type: Component | 2-Way
    • Sensitivity 2.83V/1m | dB: 94
    • Installation Depth | mm: 64
    Specifications
    Power handling RMS / Max.  P 100 / 150 Watts
    Frequency response   50 Hz - 25,000 Hz
    Impedance Z 3 Ω
    Sensitivity  SPL 94 dB @ 2.83V / 1m
    90 dB @ 1W / 1m
    Outer diameter ø

    Tweeter: 32.0 mm / 1.26”
    Woofer: 195.0 mm / 7.68”
    Woofer with universal mounting ring: 208.9 mm / 8.22"
    Installation diameter ø

    Tweeter: 32.0 mm / 1.26”
    Woofer: 173.5 mm / 6.83”
    Installation depth

    Tweeter: 9.8 mm / 0.39”
    Woofer: 63.7 mm / 2.51”
    Dimensions crossover

    103.3 x 50.4 x 25.0 mm /
    4.07 x 1.98 x 0.98”



    Woofer
    Impedance Z 3 Ω
    DC resistance Re 3.0 Ω
    Resonance frequency Fs 67 Hz
    Mechanical Q factor Qms 4.25
    Electrical Q factor Qes 0.93
    Total Q factor Qts 0.76
    Compliance Cms 300 μm/N
    Equivalent air volume Vas 19.0 L
    Force factor B*l 5.1 Tm
    Cone area Sd 214 cm2
    Moving mass Mms 18.8 g
    Mechanical resistance Rms 1.87 kg/s
    Voice coil diameter  ø 25 mm

    Voice coil winding height

    		   11.6 mm
    Max. linear excursion Xmax +/- 3.8 mm


    Tweeter
    Impedance Z 4 Ω
    Resonance frequency Fs 1800 Hz
    Voice coil diameter ø 20 mm



    Features
    Tweeter

    Ultra compact, titanium dome, neodymium magnet and FlexMount20
    Woofer

    Paper with Cenosphere coating, ProConnect terminal, FlexMount200 and grille
    Crossover

    Tweeter: 12 dB highpass, protection and level adjustment



    Compatibility
    • FlexMount20
    • FlexMount200
    • WireKits
    What's included
    • 2 x Tweeter Ci3 T20FM-TI
    • 2 x Midbass Ci3 W200FM-S3
    • 2 x Crossover Ci3 FX-UNI.2
    • 2 x Woofer connection cable CWK FX.W-550CC
    • 2 x Tweeter mounting accessories
    • 2 x Woofer mounting ring and grille
    • 2 x COMPOSE Connect Kit
    • 2 x Mounting material
