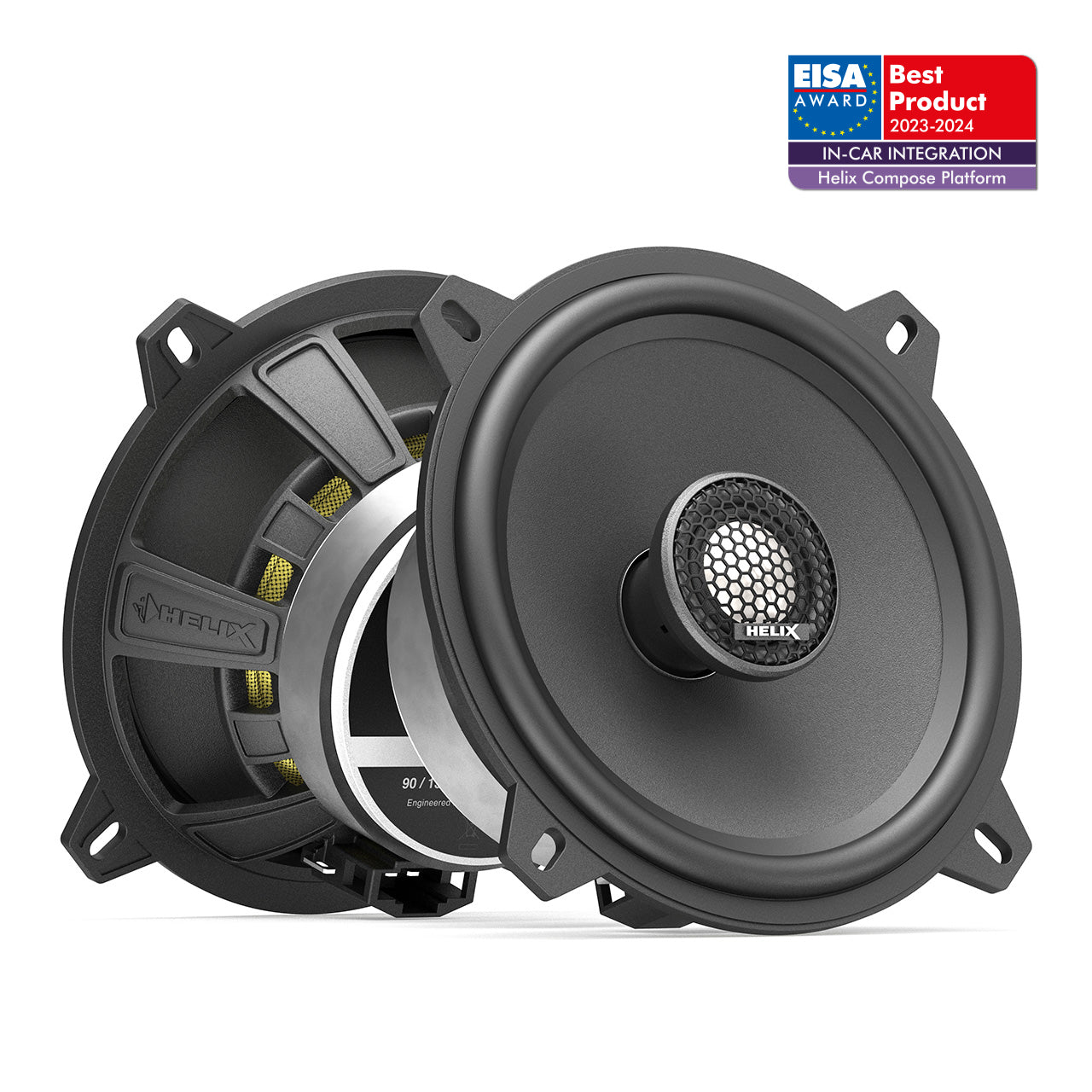

HELIX Ci3 C130.2-S3 - 5.25" 2-Way Coaxial Speaker Pair | 3Ω

HELIX Ci3 C130.2-S3 - 5.25" 2-Way Coaxial Speaker Pair | 3Ω

COMPOSE Ci3 C130.2-S3

In stock
$395.00
$395.00

HELIX COMPOSE. The perfect speaker for any composition.

Born out of the increasingly demanding challenges of modern automobile technology and the HELIX-typical pursuit of intelligent solutions, we made the progressive redesign of proven universal speaker systems our mission. The result: our innovative HELIX COMPOSE platform that, according to the motto "developed inside the vehicle, for the vehicle", combines classic universal speakers with the advantages of vehicle-specific systems. Innovative materials and the latest technologies paired with smart, practical engineering - the best of both worlds in harmony: high efficiency, fantastic sound quality and enormous dynamics that fit in any vehicle. HELIX COMPOSE – universal speakers evolved.

Read more info here.

Features
  • 2-way performance coaxial speaker system that combines high efficiency with outstanding sound quality
  • 3 Ohms technology for the maximised power output of the amplifier
  • Automotive grade ProConnect connection terminal allows the use of conventional speaker cables or a fast, secure and fail-safe connection via optionally available WireKits

Read more features here.

Product parameters
  • Size: 130mm | 5.25"
  • Driver Power | Watts RMS: 90
  • Voice Coil x Impedance: 1 x 3Ω
  • Type: Coaxial | 2 Way
  • Sensitivity 2.83V/1m | dB: 92
  • Installation Depth | mm: 55
Specifications
Power handling RMS / Max.  P 90 / 135 Watts
Frequency response   80 Hz - 25,000 Hz
Impedance Z 3 Ω
Sensitivity  SPL 92 dB @ 2.83V / 1m
88 dB @ 1W / 1m
Outer diameter ø 130.0 mm / 5.12”
Installation diameter ø 116.5 mm / 4.59”
Installation depth    55.4 mm / 2.18”

Midbass
Impedance Z 3 Ω
DC resistance Re 3.0 Ω
Resonance frequency Fs 92 Hz
Mechanical Q factor Qms 2.76
Electrical Q factor Qes 0.90
Total Q factor Qts 0.68
Compliance Cms 374 μm/N
Equivalent air volume Vas 4.9 L
Force factor B*l 3.8 Tm
Cone area Sd 97 cm2
Moving mass Mms 7.6 g
Mechanical resistance Rms 1.60 kg/s
Voice coil diameter  ø 25 mm

Voice coil winding height

   10.5 mm
Max. linear excursion Xmax +/- 3.2 mm

Tweeter
Voice coil diameter ø 20 mm

Features
Tweeter   Titanium dome and neodymium magnet
Midbass

Paper with Cenosphere coating and ProConnect terminal
Crossover   Integrated, 6 dB highpass


Compatibility
  • WireKits
What's included
  • 2 x Ci3 C130.2-S3
  • 1 x Mounting material
HELIX Ci3 C130.2-S3 - 5.25" 2-Way Coaxial Speaker Pair | 3Ω

$395.00
