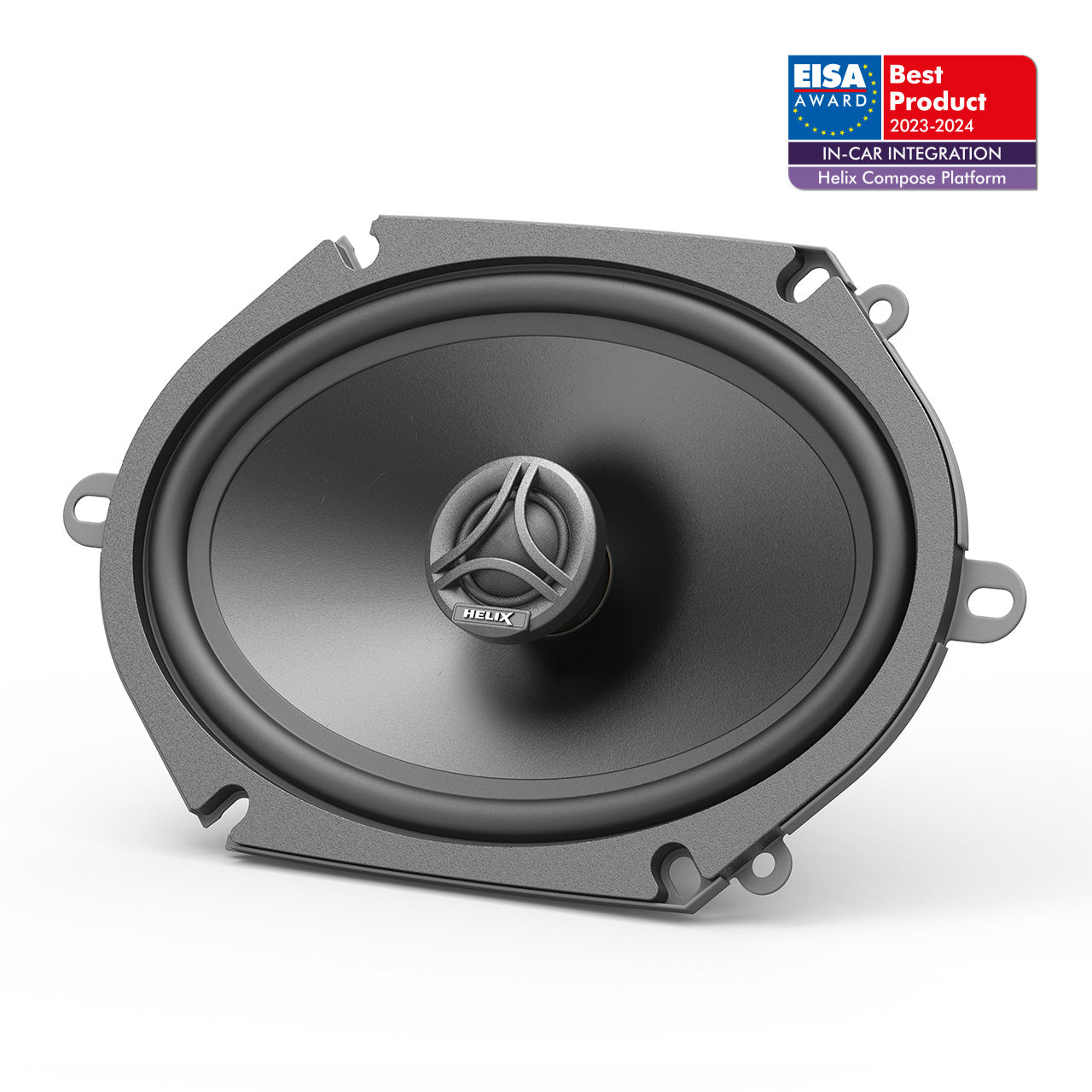

HELIX CB C570.2-S3 - 5x7" 2-Way Coaxial Kit Speaker Pair | 3Ω

HELIX CB C570.2-S3 - 5x7" 2-Way Coaxial Kit Speaker Pair | 3Ω

COMPOSE BASIC CB C570.2-S3

In stock
$280.00
$280.00

HELIX COMPOSE. The perfect speaker for any composition.

Born out of the increasingly demanding challenges of modern automobile technology and the HELIX-typical pursuit of intelligent solutions, we made the progressive redesign of proven universal speaker systems our mission. The result: our innovative HELIX COMPOSE platform that, according to the motto "developed inside the vehicle, for the vehicle", combines classic universal speakers with the advantages of vehicle-specific systems. Innovative materials and the latest technologies paired with smart, practical engineering – the best of both worlds in harmony: high efficiency, fantastic sound quality and enormous dynamics that fit in any vehicle. HELIX COMPOSE – universal speakers evolved.

Read more info here.

Features
  • 2-way coaxial speaker system that combines high efficiency with exceptional sound performance
  • 3 Ohms technology for the maximised power output of the amplifier
  • Compact design for trouble-free installation even in cramped conditions
  • Tweeter
    • 0.75” / 20 mm tweeter with silk dome for an accurate treble response
    • Very efficient neodymium magnet for high magnetic flux linearity
  • Midbass
    • 5 x 7” / 130 x 180 mm midbass with lightweight polypropylene cone which provides essential stiffness for exceptional sound performance
    • Sturdy steel basket with additional ventilation holes for better voice coil cooling and high power handling
    • Powerful magnet system for optimised impulse response
  • Crossover
    • Integrated with a 6 dB slope
Product parameters
  • Size: Oval | 5x7"
  • Driver Power | Watts RMS: 70
  • Voice Coil x Impedance: 1 x 3Ω
  • Type: Coaxial | 2 Way
  • Sensitivity 2.83V/1m | dB: 92
  • Installation Depth | mm: 58
Specifications
Power handling RMS / Max.  P 70 / 105 Watts
Frequency response   60 Hz - 22,000 Hz
Impedance Z 3 Ω
Sensitivity  SPL 92 dB @ 2.83V / 1m
88 dB @ 1W / 1m
Outer diameter ø 228.8 x 144.0 mm / 9.01 x 5.67”
Installation diameter ø 181.5 x 125.5 mm / 7.15 x 4.94”
Installation depth    58.4 mm / 2.30”

Midrange
Impedance Z 3 Ω
DC resistance Re 3.0 Ω
Resonance frequency Fs 67 Hz
Mechanical Q factor Qms 3.64
Electrical Q factor Qes 1.04
Total Q factor Qts 0.81
Compliance Cms 399 μm/N
Equivalent air volume Vas 12.4 L
Force factor B*l 4.2 Tm
Cone area Sd 149 cm2
Moving mass Mms 14.3 g
Mechanical resistance Rms 1.64 kg/s
Voice coil diameter  ø 25 mm

Voice coil winding height

   8.9 mm
Max. linear excursion Xmax +/- 2.5 mm

Tweeter
Voice coil diameter ø 20 mm

Features
Tweeter   Silk dome and neodymium magnet
Midbass

Injected polypropylene cone
Crossover   Integrated, 6 dB highpass


What's included
  • 2 x CB C570.2-S3
  • 1 x Mounting material
