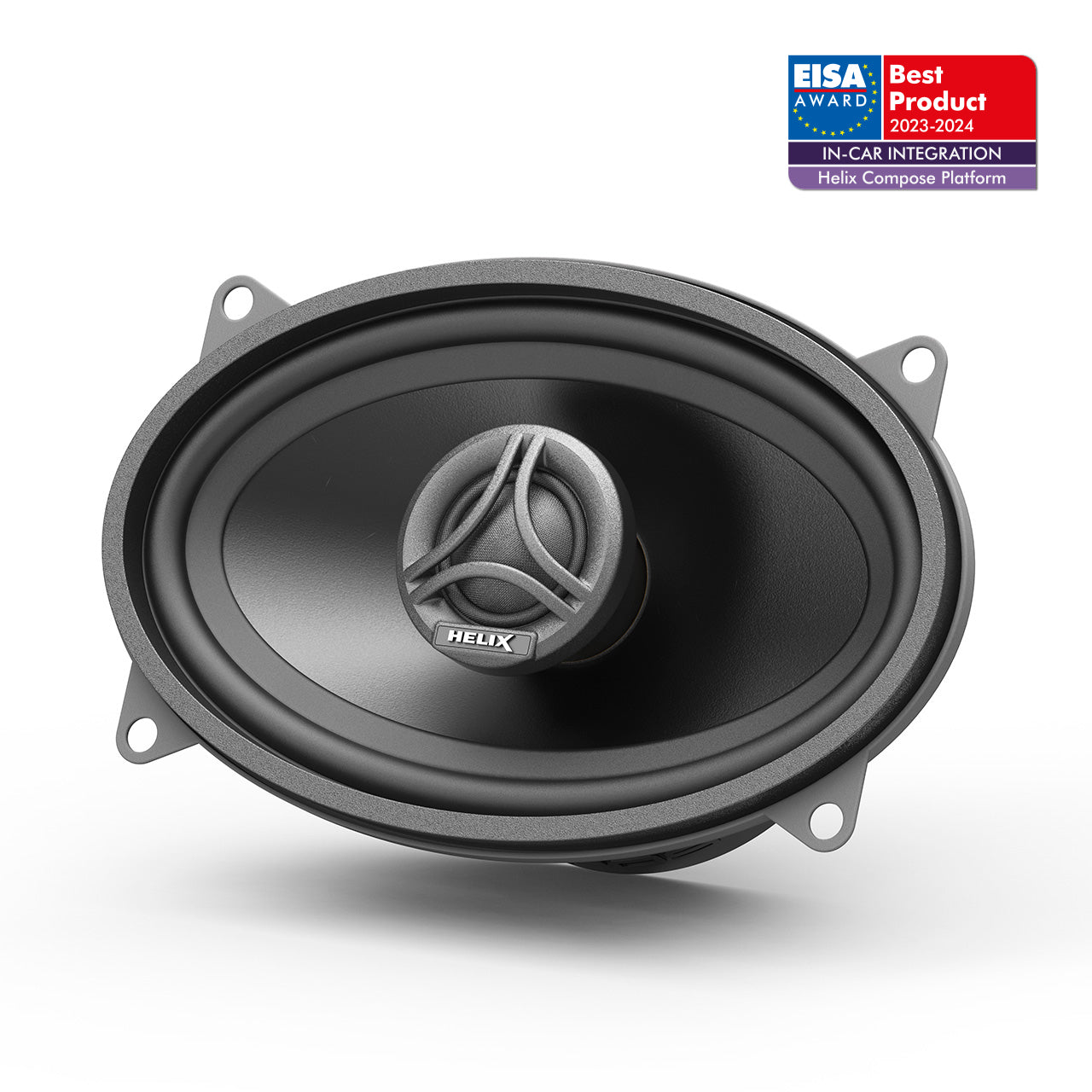

HELIX CB C460.2-S3 - 4x6" 2-Way Coaxial Speaker Pair | 3Ω

HELIX CB C460.2-S3 - 4x6" 2-Way Coaxial Speaker Pair | 3Ω

COMPOSE BASIC CB C460.2-S3

In stock
$280.00
$280.00

HELIX COMPOSE. The perfect speaker for any composition.

Born out of the increasingly demanding challenges of modern automobile technology and the HELIX-typical pursuit of intelligent solutions, we made the progressive redesign of proven universal speaker systems our mission. The result: our innovative HELIX COMPOSE platform that, according to the motto "developed inside the vehicle, for the vehicle", combines classic universal speakers with the advantages of vehicle-specific systems. Innovative materials and the latest technologies paired with smart, practical engineering – the best of both worlds in harmony: high efficiency, fantastic sound quality and enormous dynamics that fit in any vehicle. HELIX COMPOSE – universal speakers evolved.

Read more info here.

Features
  • 2-way coaxial speaker system which combines high efficiency with exceptional sound performance
  • 3 Ohms technology for maximised power output of the amplifier
  • Compact design for trouble-free installation even in cramped conditions
  • Tweeter
    • 0.75” / 20 mm tweeter with silk dome for accurate treble response
    • Very efficient neodymium magnet for high magnetic flux linearity
  • Midrange
    • 4 x 6” / 100 x 150 mm midbass with lightweight polypropylene cone which provides essential stiffness for exceptional sound performance
    • Sturdy steel basket with additional ventilation holes for better voice coil cooling and high power handling
    • Powerful magnet system for optimised impulse response
  • Crossover
    • Integrated with 6 dB slope
Product parameters
  • Size: Oval | 4x6"
  • Driver Power | Watts RMS: 50
  • Voice Coil x Impedance: 1 x 3Ω
  • Type: Coaxial | 2 Way
  • Sensitivity 2.83V/1m | dB: 90
  • Installation Depth | mm: 49
Specifications
Power handling RMS / Max.  P 50 / 75 Watts
Frequency response   90 Hz - 22,000 Hz
Impedance Z 3 Ω
Sensitivity  SPL 90 dB @ 2.83V / 1m
86 dB @ 1W / 1m
Outer diameter ø 153.5 x 97.5 mm / 6.04 x 3.84”
Installation diameter ø 141.9 x 86.9 mm / 5.58 x 3.42”
Installation depth    48.9 mm / 1.93”

Midwoofer
Impedance Z 3 Ω
DC resistance Re 3.1 Ω
Resonance frequency Fs 120 Hz
Mechanical Q factor Qms 6.18
Electrical Q factor Qes 1.14
Total Q factor Qts 0.96
Compliance Cms 204 μm/N
Equivalent air volume Vas 1.7 L
Force factor B*l 4.2 Tm
Cone area Sd 77 cm2
Moving mass Mms 8.7 g
Mechanical resistance Rms 1.06 kg/s
Voice coil diameter  ø 25 mm

Voice coil winding height

   8.9 mm
Max. linear excursion Xmax +/- 2.5 mm

Tweeter
Voice coil diameter ø 20 mm

Features
Tweeter   Silk dome and neodymium magnet
Midbass

Injected polypropylene cone
Crossover   Integrated, 6 dB highpass
What's included
  • 2 x CB C460.2-S3
  • 1 x Mounting material
