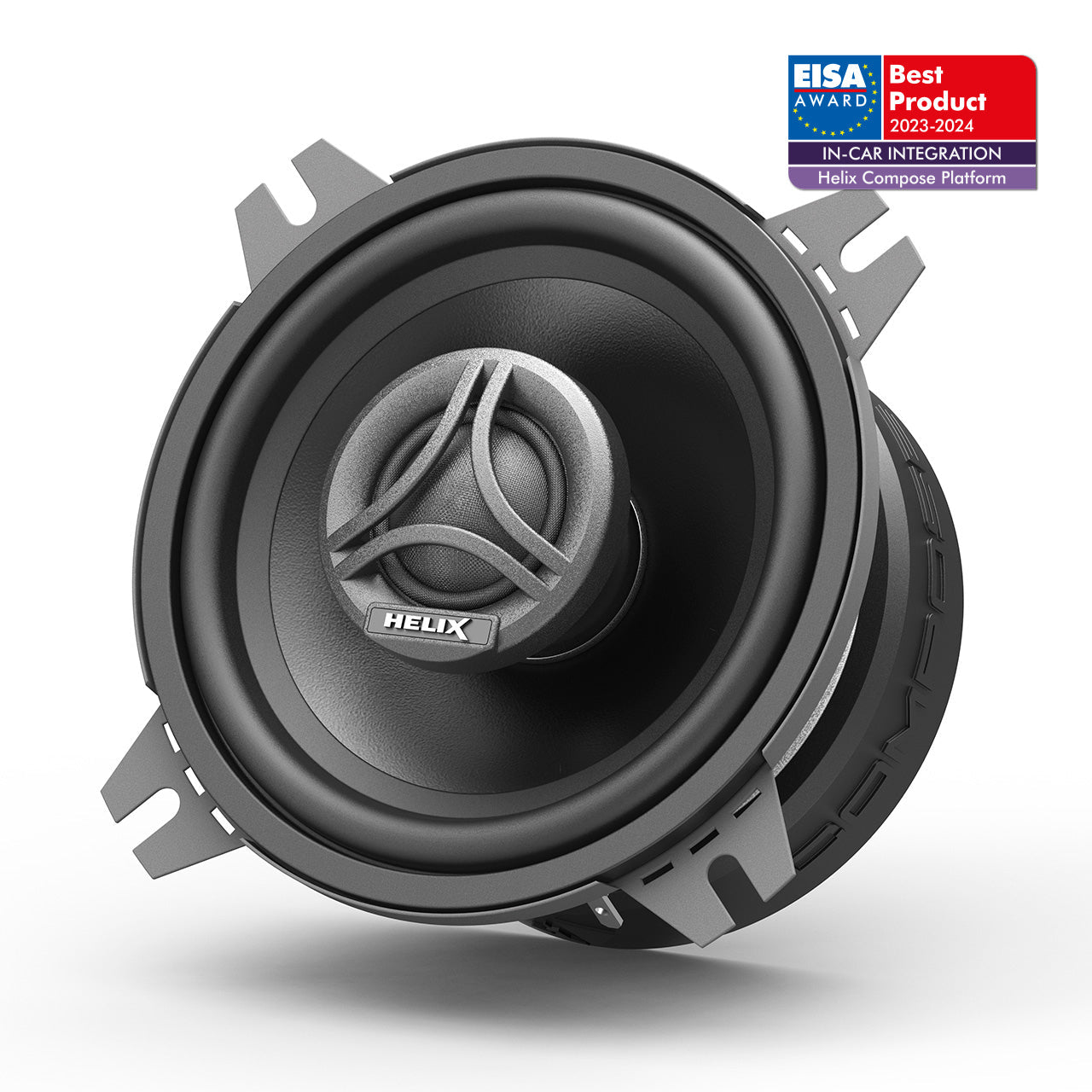

COMPOSE BASIC CB C100.2-S3

In stock
$250.00
$250.00

HELIX COMPOSE. The perfect speaker for any composition.

Born out of the increasingly demanding challenges of modern automobile technology and the HELIX-typical pursuit of intelligent solutions, we made the progressive redesign of proven universal speaker systems our mission. The result: our innovative HELIX COMPOSE platform that, according to the motto "developed inside the vehicle, for the vehicle", combines classic universal speakers with the advantages of vehicle-specific systems. Innovative materials and the latest technologies paired with smart, practical engineering – the best of both worlds in harmony: high efficiency, fantastic sound quality and enormous dynamics that fit in any vehicle. HELIX COMPOSE – universal speakers evolved.

Read more info here.

Features
  • 2-way coaxial speaker system that combines high efficiency with exceptional sound performance
  • 3 Ohms technology for the maximised power output of the amplifier
  • Compact design for trouble-free installation even in cramped conditions
  • Tweeter
    • 0.75” / 20 mm tweeter with silk dome for an accurate treble response
    • Very efficient neodymium magnet for high magnetic flux linearity
  • Midrange
    • 4” / 100 mm midrange with lightweight polypropylene cone which provides essential stiffness for exceptional sound performance
    • Sturdy steel basket with additional ventilation holes for better voice coil cooling and high power handling
    • Powerful magnet system for optimised impulse response
  • Crossover
    • Integrated with 6 dB slope
Product parameters
  • Size: 100mm | 4"
  • Driver Power | Watts RMS: 60
  • Voice Coil x Impedance: 1 x 3Ω
  • Type: Coaxial | 2 Way
  • Sensitivity 2.83V/1m | dB: 86
  • Installation Depth | mm: 49
Specifications
Power handling RMS / Max.  P 60 / 90 Watts
Frequency response   100 Hz - 22,000 Hz
Impedance Z 3 Ω
Sensitivity  SPL 86 dB @ 2.83V / 1m
82 dB @ 1W / 1m
Outer diameter ø 99.2 mm / 3.91”
Installation diameter ø 89.5 mm / 3.52”
Installation depth    48.9 mm / 1.93”

Midrange
Impedance Z 3 Ω
DC resistance Re 3.0 Ω
Resonance frequency Fs 113 Hz
Mechanical Q factor Qms 4.97
Electrical Q factor Qes 1.05
Total Q factor Qts 0.87
Compliance Cms 272 μm/N
Equivalent air volume Vas 0.8 L
Force factor B*l 3.9 Tm
Cone area Sd 45 cm2
Moving mass Mms 7.2 g
Mechanical resistance Rms 1.04 kg/s
Voice coil diameter  ø 25 mm

Voice coil winding height

   8.9 mm
Max. linear excursion Xmax +/- 2.5 mm

Tweeter
Voice coil diameter ø 20 mm

Features
Tweeter   Silk dome and neodymium magnet
Midbass

Injected polypropylene cone
Crossover   Integrated, 6 dB highpass
What's included
  • 2 x CB C100.2-S3
  • 1 x Mounting material
