ALPINE HDZ-65C Status Hi-Res 6.5" 2-Way Component Speaker Set

Alpine Introduces the all-new Alpine Status sound system: using the same engineering and design concepts drawn from the third generation, Ultra High-Resolution AlpineF#1Status system, Alpine created “Alpine Status” to achieve High-Resolution Sound at a more approachable and accessible price point. The Alpine Status system is also extremely flexible: all components can be purchased and used in “stand-alone” configuration.

For the audiophile that’s looking to build an ideal sound system, Alpine Status offers a wide range of Hi-Res Audio enabled speakers. The HDZ-65C 2-Way component speaker set with a high-resolution bandwidth of 55Hz – 40kHz includes a 170mm door woofer and a 70mm ring-radiator tweeter with 25mm voice coil. They also include high-end speaker X-overs.

All speaker cones are made from the same Carbon Composite material to create a unified timbre identity during playback. They get very close to the AlpineF#1Status speakers look and feel, using a very similar constructing and motor assembly, as well as the identical build-materials for highest sound quality

Hi-Res Audio Made Accessible

The Alpine Status system features many technologies, components and materials of the AlpineF#1Status system to achieve ultra high-precision music reproduction – at an affordable price tag. It is designed to play music tracks at 192kHz / 24bit format, which are widely accessible in many online stores and streaming platforms. High-Res Audio playback of 192kHz / 24bit allows Alpine Status to create a heightened listening experience in the vehicle that emulates the feeling of an intimate recording studio session.

Audiophile 2-Way Speaker System

Drawing from AlpineF#1Status trickle-down technology and materials, these Hi-Res Audio certified speakers deliver highest audiophile sound quality up to 40kHz in your vehicle. The 2-way system consists of 170mm door woofers and 70mm ring-radiator tweeters with 25mm voice coil. They also include high-end X-over networks in the set.

Carbon Fiber Cones

All speakers in this set (as well as the HDZ-110 Alpine Status subwoofer) use backed carbon composite cones to achieve a fully unified timbre identity – resulting in excellent harmonics. Carbon is very lightweight and stiff, resulting in high dynamics and low distortion. Backed carbon composite technology is also used in race-car monocoques for its light weight and high crash resistance.

Double-Gathered Edge

Yet another trickle-down technology from the AlpineF#1Status speakers: the double-gathered edge allows maximum cone excursion with excellent cone control and stability. This reduces sound distortion caused by cone wobble at higher volume levels.

High-End Ring-Radiator Tweeter

The included 70mm Hi-res Audio ring-radiator tweeters sound simply amazing and play up to 40kHz. They feature a 25mm carbon fibre diaphragm that is tuned to perfectly harmonise with the mid-range speaker and woofer to achieve a fully unified timbre identity. They also include an integrated wave-guide, tuned-back chamber and a powerful neodymium magnet.

Features

• Hi-Res Audio certified 2-Way speaker system
• AlpineF#1Status speaker trickle-down technology
• Maximum Peak Power: 300 Watts
• Maximum RMS Power: 100 Watts

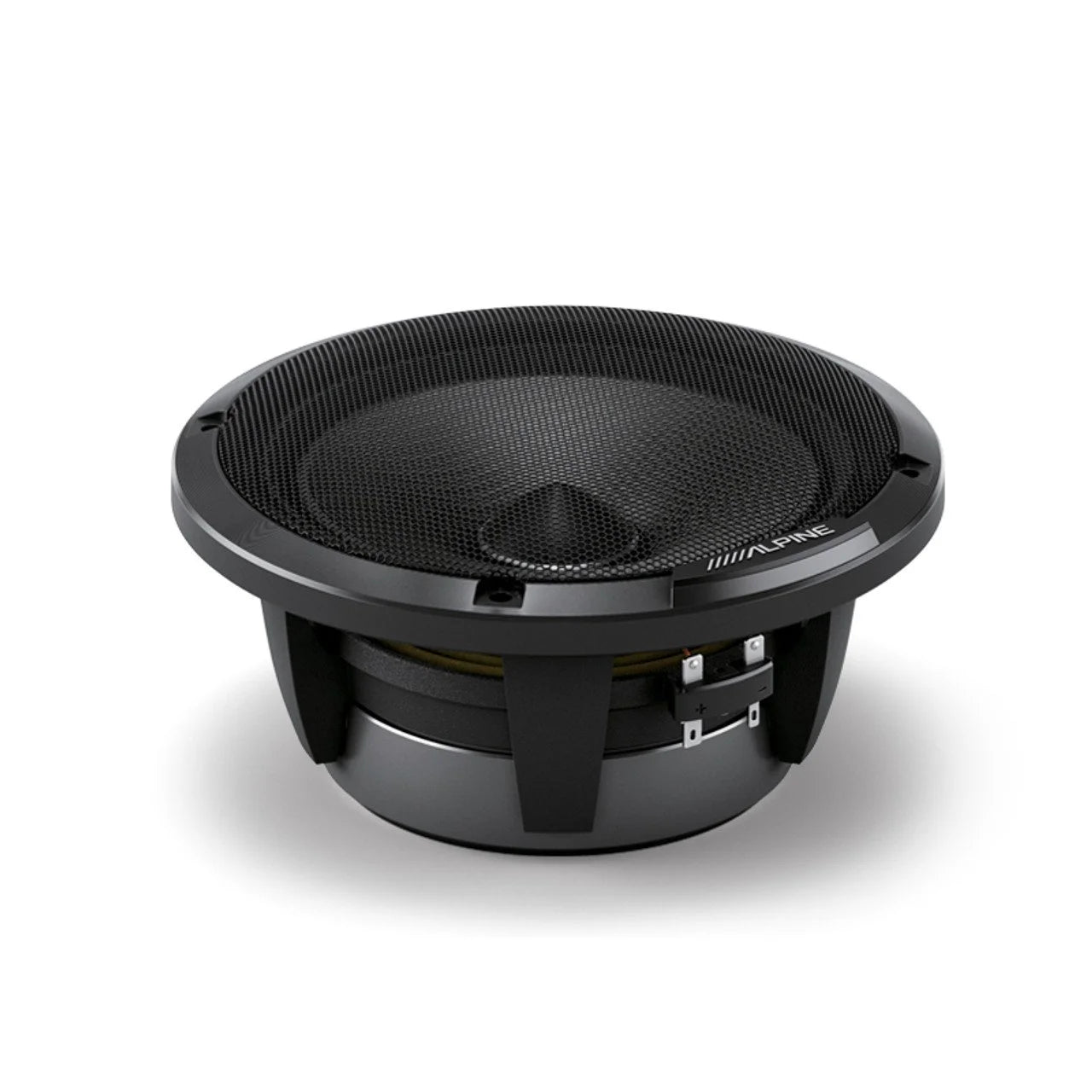

• Woofer diameter: 170mm (177mm with attached grill)
• Tweeter diameter: 70mm (25mm voice coil)
• Aluminum die-cast baskets
• Ring-radiator tweeters
• Backed carbon fiber cones
• Double-gathered edge

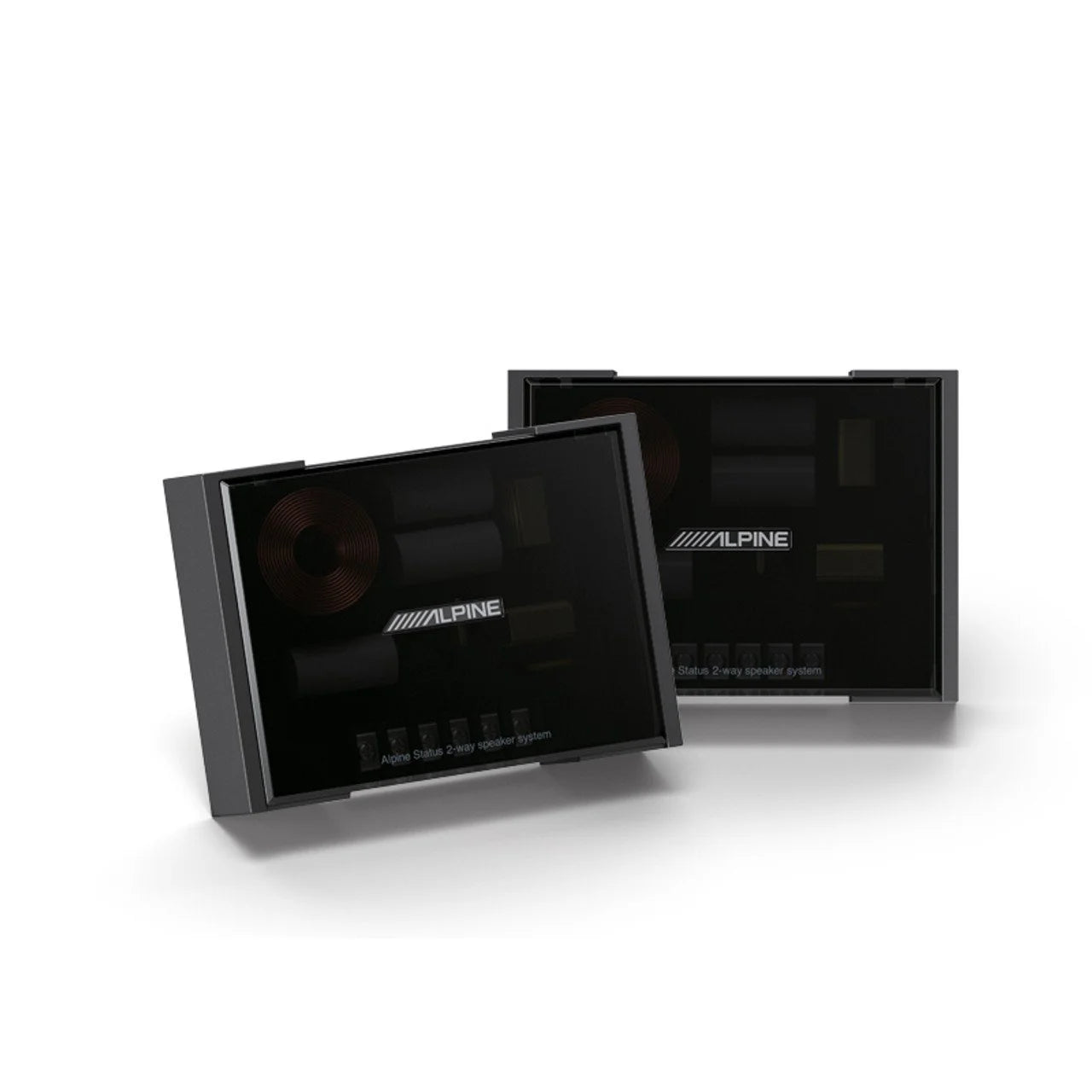

• High-end X-Over networks
• Included speaker grills
• Integrated Wave Guide on all speakers

Specifications

• Impedance 4Ω
• Sensitivity 88dB SPL (2.83 V @ 1 m)
• Frequency Response: 55Hz – 40kHz
• Mounting depth: woofer 67mm
• Cutout diameter: woofer 142mm
• Recommended amplification: up to 100W RMS per channel
• Ferrite magnet (woofer)
• Neodymium magnet (mid-range speaker and tweeter)
