ALPINE HDA F60 Status Hi-Res Audio 4 Channel Amplifier

Alpine Status – High-Resolution Sound Made Accessible

Alpine introduces Alpine Status, a high-resolution sound system developed using the same engineering philosophy as the flagship AlpineF#1Status system—now at a more accessible price point. Designed for flexibility, each component can be used standalone or as part of a complete Alpine Status system.

HDA-F60 4-Channel Hi-Res Amplifier

The HDA-F60 is a Hi-Res Audio certified 4-channel amplifier that sets a new benchmark for sound quality. Its advanced digital design delivers exceptional power, ultra-low distortion, and extraordinary control, producing true high-resolution audio with remarkable precision.

With a frequency response of 10 Hz – 60 kHz and a damping factor >500, the HDA-F60 delivers powerful, accurate sound that faithfully reproduces music as intended.

Hi-Res Audio Performance

Designed to play 192 kHz / 24-bit audio files, Alpine Status brings studio-quality sound into the vehicle. This ultra-high data resolution reveals subtle details—such as vocal texture and instrument nuance—for an immersive, recording-studio-like listening experience.

Design & Build

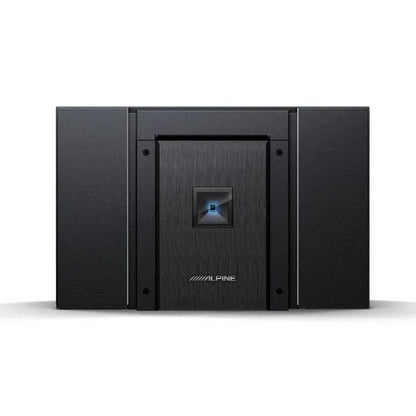

The HDA-F60 features a clean, modern design with a copper-plated chassis, black circuit board, and Alpine’s signature blue centre power indicator, delivering both performance and premium aesthetics.

Reliability & Protection

An improved heat sink and intelligent protection circuitry prevent thermal shutdown, ensuring consistent, reliable performance even during extended listening sessions.

Installation & Connectivity

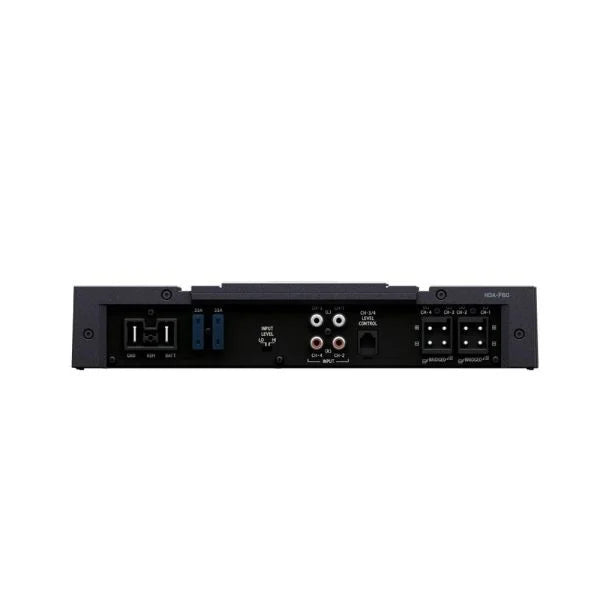

Quick-connect power and speaker terminals allow for safe, easy installation. A one-sided terminal layout and top-panel controls provide fast access for tuning and setup.

Alpine Status System

Alpine Status components are optimised to perform together as a complete high-resolution system, yet each piece can be purchased individually for custom system builds.

Studio-Grade Audio

With 192 kHz / 24-bit playback—over six times the data of standard CD audio—Alpine Status exceeds conventional Hi-Res standards, capturing every detail for an authentic, studio-quality sound experience on the road.

Specifications

• RMS Output Power 100Wx4ch (4Ω), 150Wx4ch (2Ω), Bridged 300Wx2ch (4Ω)
• THD+N ≤0.02% (10W),≤0.07% (Rated Power)
• S/N Ratio >106dB
• Frequency Response (-3dB) 10-60kHz (Hi-Res)
• Damping Factor >500
• Size (mm) W297xD192xH50.8
