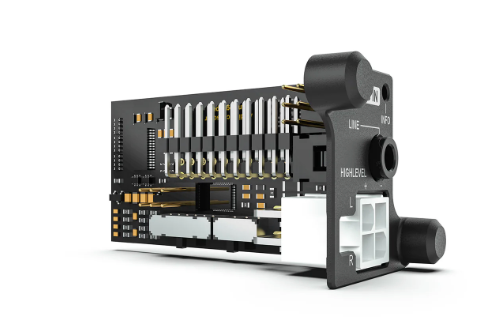

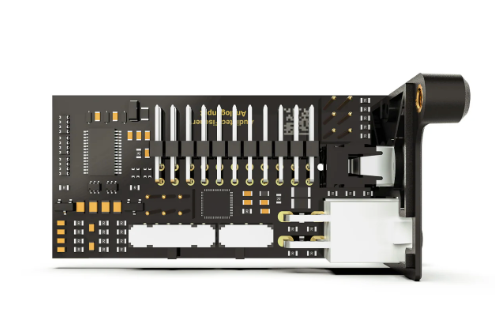

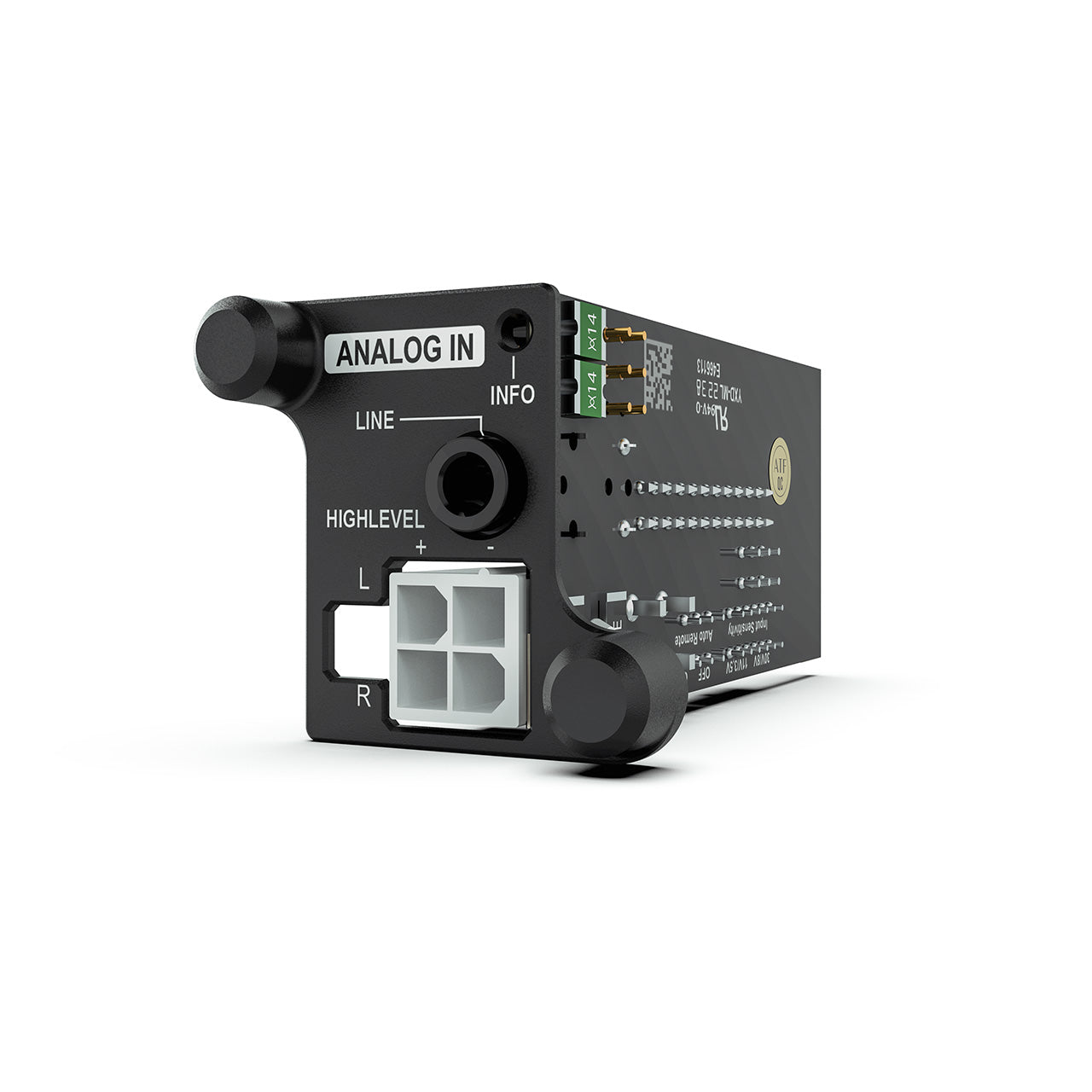

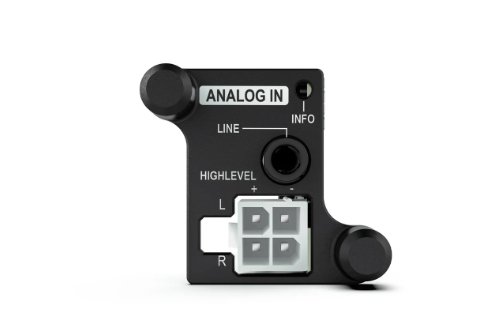

Extension Card 2.0 ANALOG IN - HELIX & MATCH DSP Extension Card With Analong Input

Two additional channels – maximum flexibility

The Extension Card 2.0 ANALOG IN expands your DSP or DSP amplifier with two analog input channels – ideal for complex application scenarios, connecting additional signal sources such as a TV or smartphone, or integration into OEM premium sound systems. Whether highlevel or lowlevel signal: this module provides the right interface, offering flexible use and full configuration via the DSP PC-Tool.

Comprehensive connectivity

A high-quality highlevel input with ADEP.3 circuit, Auto Remote function, and adjustable input sensitivity from 1.5 to 30 V ensures seamless integration with OEM head units or factory amplifiers. For signal sources with a lowlevel output, the module offers an additional 3.5 mm stereo input with adjustable input sensitivity from 0.5 to 8 V.

Freely configurable via DSP PC-Tool

The inputs can be freely configured in the DSP PC-Tool – either as additional main inputs or as an AUX source. This way, the system adapts precisely to your specific needs.

Seamless integration – maximum compatibility

The Extension Card 2.0 ANALOG IN is compatible with all HELIX and MATCH DSP products featuring an Extension Card 2.0 slot. A module-specific plastic cover is included for easy installation into the device’s side panel. A well-designed solution for even more connection options.

Features

• Extends the DSP device by two additional analog input channels
• Highlevel input with ADEP.3 circuit, Auto Remote switch and an adjustable input voltage from 1.5 to 30 Volts
• Lowlevel stereo line input via 3.5 mm jack with an adjustable input voltage range from 0.5 to 8 Volts
• Inputs can be freely configured via the DSP PC-Tool as additional Main Inputs or as an AUX source
• Including plastic cover panel with injected threated inserta and MOLEX connection cable for the highlevel input
• Made in Germany

Product parameters

• Application: For Amplifiers / DSP
• Type: Extension Card or Module

Specifications

Compatibility

All HELIX and MATCH DSP devices featuring Extension Card 2.0 slot

What's included

• 1 x ANALOG IN module
• 1 x Module-specific cover panel
• 1 x MOLEX connection cable for the highlevel input
• 1 x Mounting screws
