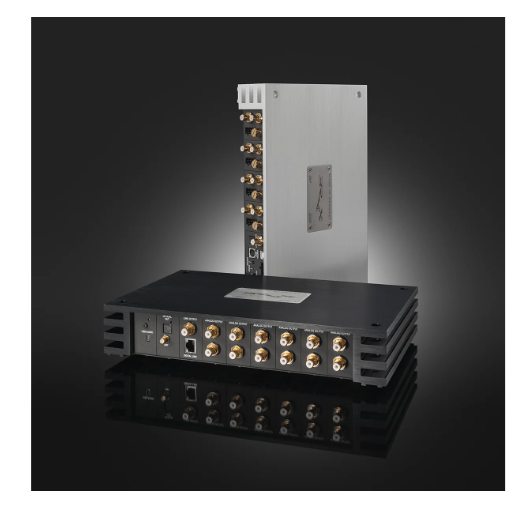

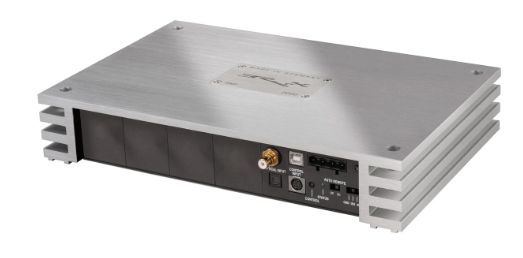

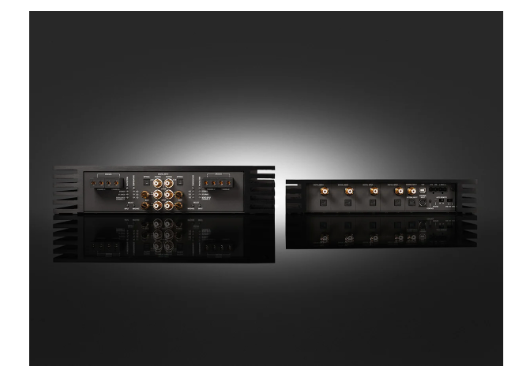

BRAX DSP CORE - High-End Digital Signal Processor 192 kHz / 32 Bit Configurable

BRAX DSP CORE – The Ultimate Customisable DSP

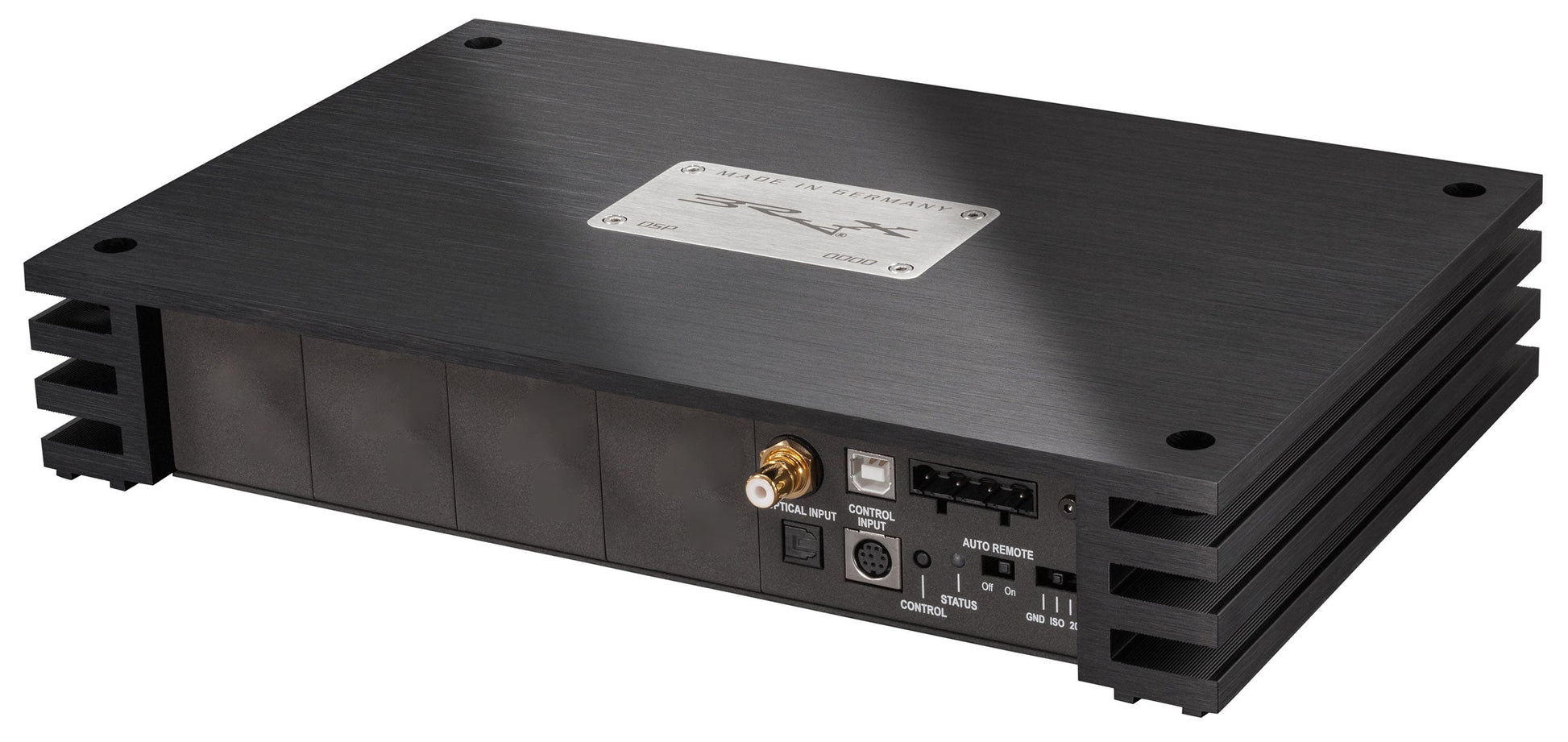

The BRAX DSP CORE is the latest evolution of Audiotec Fischer’s flagship digital signal processor. Unlike its predecessor, the BRAX DSP, this new CORE version no longer comes pre-equipped with a full set of inputs and outputs. Instead, it is designed as a fully modular platform, allowing each unit to be custom-configured for specific system requirements.

At its core, the device retains the same uncompromising technology as the original BRAX DSP, ensuring unparalleled sound quality, precision tuning, and limitless flexibility. However, it is now built to order, meaning it must be configured with at least one one output before it can be supplied.

This approach ensures that every BRAX DSP CORE is optimised for the exact needs of the installation, minimising unnecessary components and allowing for the highest level of customisation.

Key Changes from the Original BRAX DSP

• Now sold as a CORE unit, requiring at least one input and one output to be configured.
• Fully modular input/output system, making it adaptable to any audio setup.
• The same high-end processing power, ultra-low distortion, and extreme precision as the original BRAX DSP.

Once configured, the BRAX DSP CORE is ready to elevate any audio system to reference-level performance.

Product parameters

• Channels: 12 Channel
• RCA Input: 8x RCA
• High-Level Input: 8x High level
• Other Input: Optical , Coax
• THD+N | %: 0.0004
• Operational Voltage:
• Product Depth | mm: 310
• Product Width | mm: 200
• Product Height | mm: 56

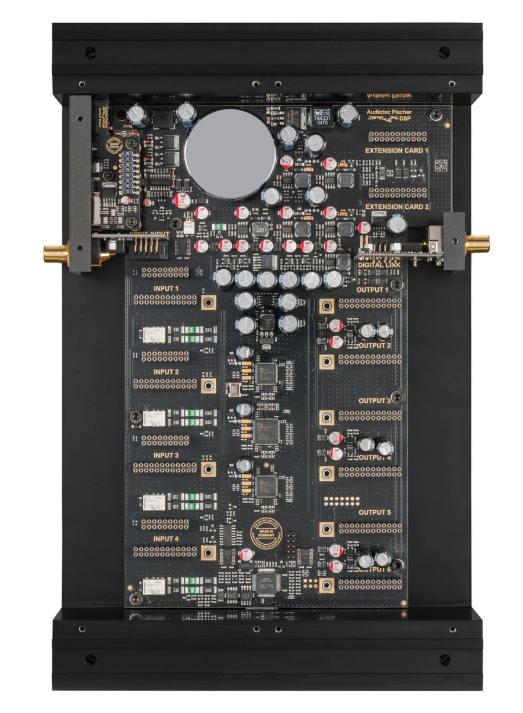

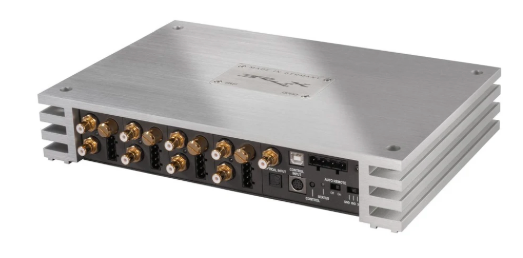

Modular Configurations

To tailor the BRAX DSP CORE to your specific system, a range of input and output expansion cards are available, including:

• Analog Inputs & Outputs (AKM / ESS-based)

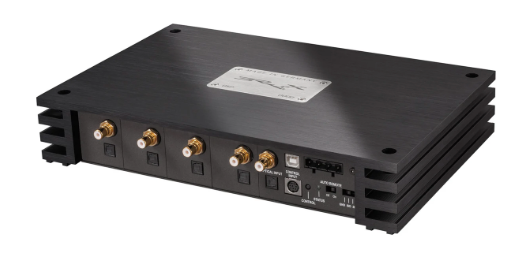

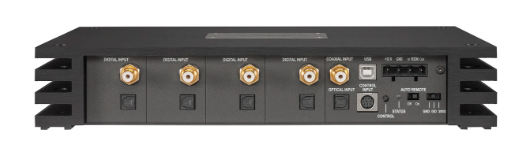

• SPDIF Digital Inputs & Outputs
• Optical Inputs
• High-Resolution USB Interface
• Bluetooth HD Audio Input

Specifications
