AMI TUNING KIT

Out of stock
$875.00
$875.00

    The complete solution for in-car signal and acoustic measurement

    The AMI Tuning Kit is a fully equipped measurement suite that combines the professional-grade AMI interface with a selection of premium accessories, offering everything required for precise signal and acoustic analysis in modern DSP-driven sound systems. Developed as a comprehensive, ready-to-use package, it’s the perfect solution for those who demand maximum accuracy, seamless integration, and flexible mobile use. At its heart: the AMI – engineered to work in perfect harmony with Audiotec Fischer’s DSP PC-Tool software, and enhanced by intelligent accessories for real-world measurement scenarios.

    High-precision acoustic and signal measurement – anywhere you need it

    The AMI serves as the central measurement hub, providing all relevant connections for a wide range of electrical and acoustic analysis tasks. Included in the kit is the renowned Beyerdynamic MM-1 – a precision-calibrated condenser measurement microphone „Made in Germany“, optimised for in-car measurements with a linear frequency response at 90°. The dedicated line input with switchable sensitivity (max. 1 V or 40 V) ensures accurate analysis of both low- and highlevel signals. Stereo signal output is available via RCA or optical digital connection for direct playback into a DSP. The integrated loopback function opens up advanced measurement options, such as precise phase response and more complex signal path evaluations.

    Made to match: Seamless integration with DSP PC-Tool

    Developed for full compatibility with the Audiotec Fischer DSP PC-Tool, the AMI becomes a powerful measurement device that unlocks the full potential of our software‘s tuning features. This includes the Advanced Input Signal Analyser (AISA) for the detection and correction of factory-applied EQ curves, time alignment and all pass filters, as well as Real-Time Analyser (RTA) support for precise frequency response measurements and automated tuning via our proprietary TuneEQ algorithm. The AMI also supports Automatic Time Measurement (ATM) for fully automated speaker delay calibration – delivering perfect timing and imaging across all channels.

    The all-in-one measuring suite – with premium accessories

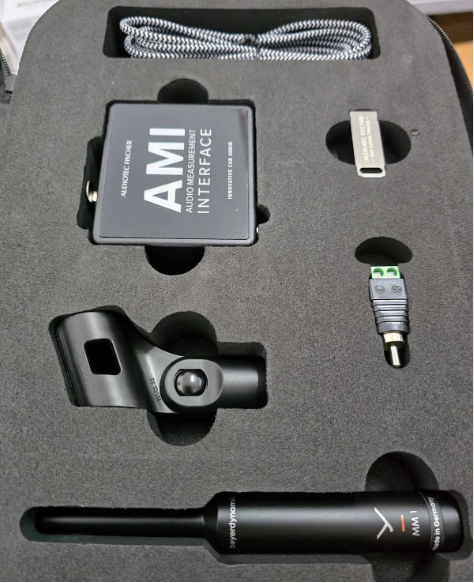

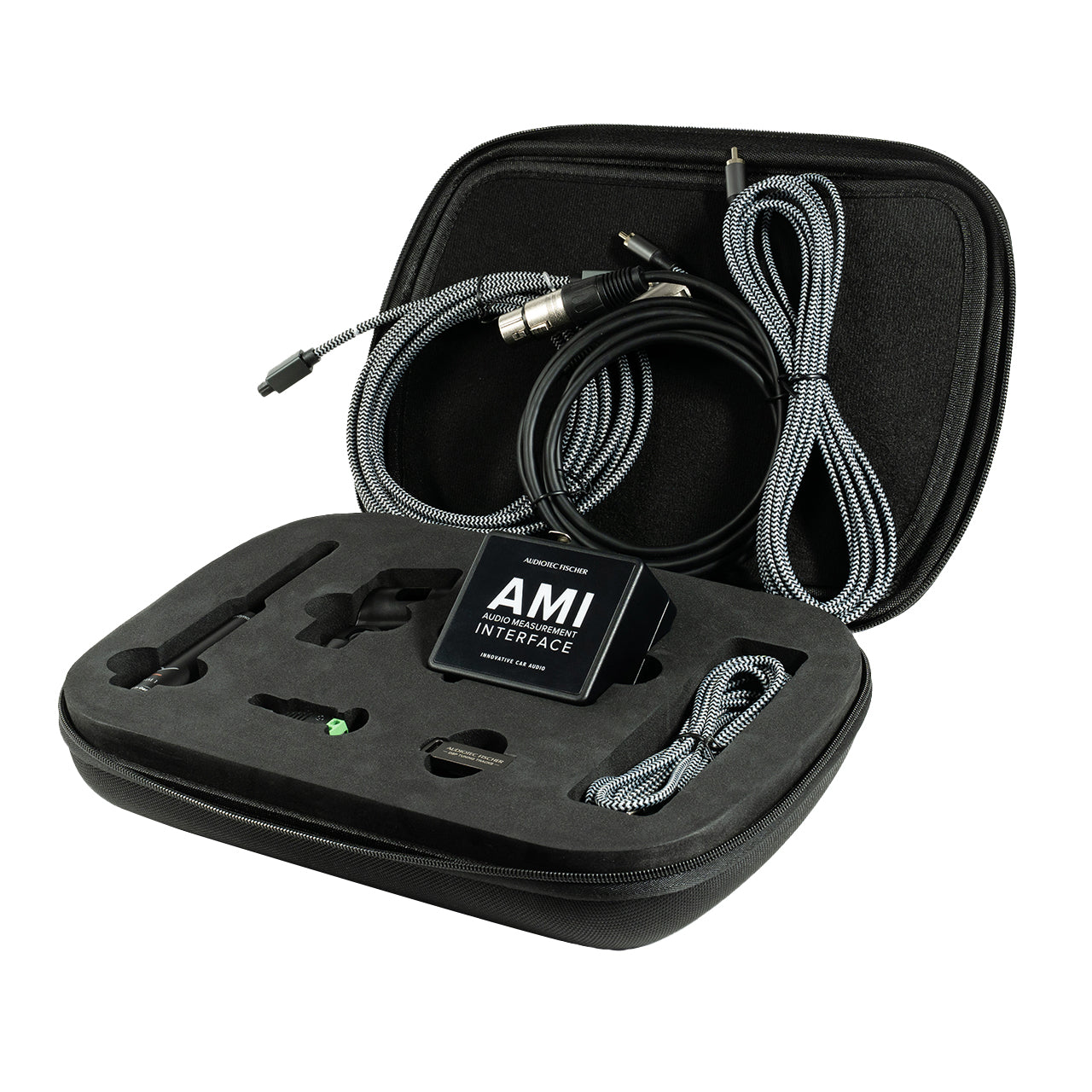

    Alongside the AMI and the Beyerdynamic MM-1 microphone, the kit includes a full suite of high-quality accessories to ensure seamless operation in the field: a 3 m USB-C cable with USB-A adapter, a RCA cable with RCA-to-Highlevel adaptors, Toslink cable, and an XLR microphone cable. The 16 GB USB 3.0 flash drive preloaded with DSP tuning tracks rounds out the set. Powered via USB and packed in a durable, compact transport case, the AMI Tuning Kit offers maximum portability and convenience – whether in the workshop or directly inside the vehicle.

    Features

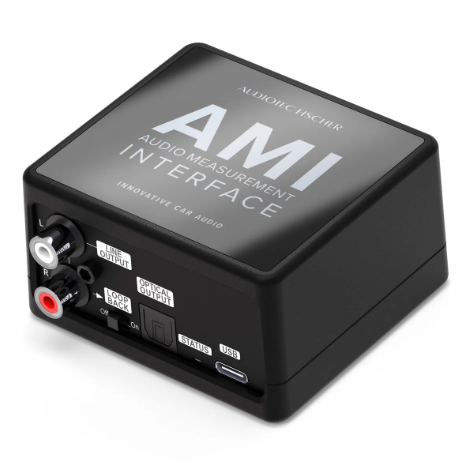

    Includes AMI (Audio Measurement Interface) – professional-grade interface for electrical and acoustic signal analysis

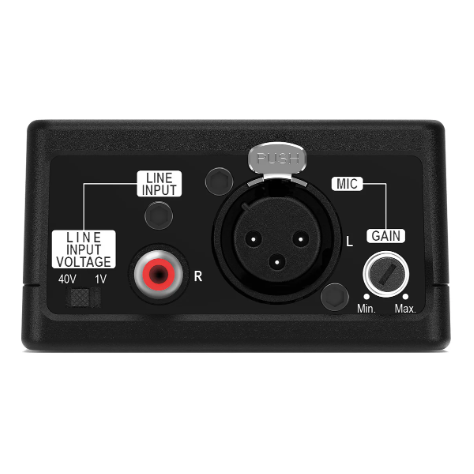

    • Stereo signal input with microphone and line input for all-in-one measurements
    • Microphone input supports all condenser microphones with adjustable gain and phantom power
    • Line input with adjustable sensitivity for low- and high-level signals (max. 1 V or 40 V RMS)

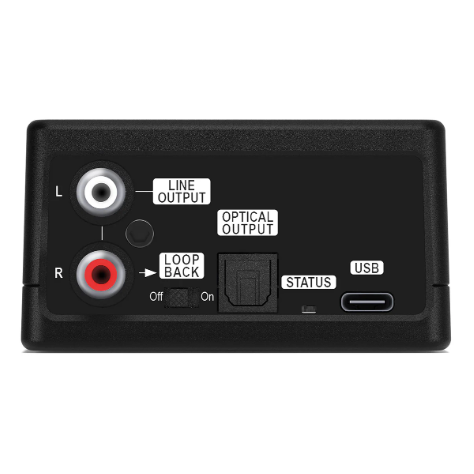

    • Stereo signal output with RCA and optical digital outputs for direct playback into DSP systems
    • Loopback functionality for advanced measurements, such as phase response analysis
    • USB-powered operation, no external power supply required

    Includes Beyerdynamic MM-1 microphone – high-precision calibrated microphone, made in Germany

    • Studio-grade condenser microphone with free-field calibration files for 0° and 90°
    • Optimised linear frequency response at 90° for precise in-car measurements

    Optimised for Audiotec Fischer’s DSP PC-Tool – seamless integration for advanced signal analysis and automated tuning tasks

    • Compatible with AISA (Advanced Signal Input Analyser) for the analysis and correction of DSP input signals, including factory-installed all pass filters, time alignment, equalisation and the detection of highpass and lowpass filters
    • Works with RTA (Real-Time Analyser) for acoustic frequency response measurements, automatic equalisation with the proprietary TuneEQ algorithm and detailed frequency and phase matching analysis
    • Compatible with ATM (Automatic Time Measurement) for automated speaker time-delay calibration

    Ready to use – complete suite with all essential components

    • Includes all essential cables:
      • USB-C cable,
      • USB-C to USB-A adaptor,
      • RCA cable,
      • RCA-to-Highlevel adaptor,
      • Toslink cable and XLR microphone cable
    • 16 GB USB 3.0 flash drive preloaded with with DSP Tuning Tracks
    • Compatible with Windows 10 & 11, macOS, Android and iOS
    Product parameters
    • Application: For Amplifiers / DSP
    • Type: Other Accessories
    Specifications
    AMI
    Inputs 1 x Microphone input
    1 x Line input
    Microphone input specification
    Frequency response 12 Hz - 44 kHz (+/-1 dB)
    Dynamic range 95 dB (A-weighted)
    Input sensitivity 5 - 200 mV
    Phantom power Yes (24 Volts)
    Line input specification
    Frequency response 8 Hz - 44 kHz (+/-1 dB)
    Dynamic range 101 dB (A-weighted)
    Input sensitivity max. 1 V / max. 40 V
    Input impedance 10 kOhms
    Outputs 2 x Line output
    1 x Optical output (SPDIF)
    Line output specification
    Frequency response 7 Hz - 44 kHz (+/-1 dB)
    Dynamic range 100 dB (A-weighted)
    Maximum output voltage 900 mV (RMS)
    Minimum load 5 kOhms
    Loopback function Yes
    General specification
    Audio sampling rate 96 kHz / 32 Bit
    USB power consumption max. 250 mA
    Supported operating systems Windows, macOS, iOS and Android

    Microphone
    Transducer principle Condenser (back-electret)
    Operating principle Pressure receiver
    Frequency response 20 – 20,000 Hz (50 – 16,000 Hz ± 1.5 dB), diffuse-field equalised
    Polar pattern Omnidirectional
    Sensitivity (0 dB = 1 V/Pa) 15 mV/Pa (= -36.5 dBV) ± 1 dB
    Nominal impedance 160 Ω
    Nominal load impedance ≥ 2.2 kΩ
    Maximum SPL (Sound Pressure Level) 122 dBSPL at f = 1 kHz, k = 1%, RL = 2.2 kΩ
    Signal-to-noise ratio (related to 1 Pa) > 57 dB
    A-weighted equivalent noise level Approx. 26 dB(A)
    Power supply 12 – 48 V phantom power
    Current consumption Approx. 1.9 mA
    Output Electronically balanced


    Compatibility
    What's included
    • 1 x AMI (Audio Measurement Interface)
    • 1 x Beyerdynamic MM1 Microphone
    • 1 x Microphone holder for tripod
    • 1 x RCA-to-Highlevel adaptor
    • 1 x 16 GB USB 3.0 flash drive with DSP tuning tracks
    • 1 x 3.0 m / 9.85’ USB-C to USB-C cable with USB-A adaptor
    • 1 x 3.5 m / 11.50’ optical toslink cable, 1 x 3.5 m / 11.50’ mono RCA cable
    • 1 x 2.0 m / 6.56’ XLR microphone cable
