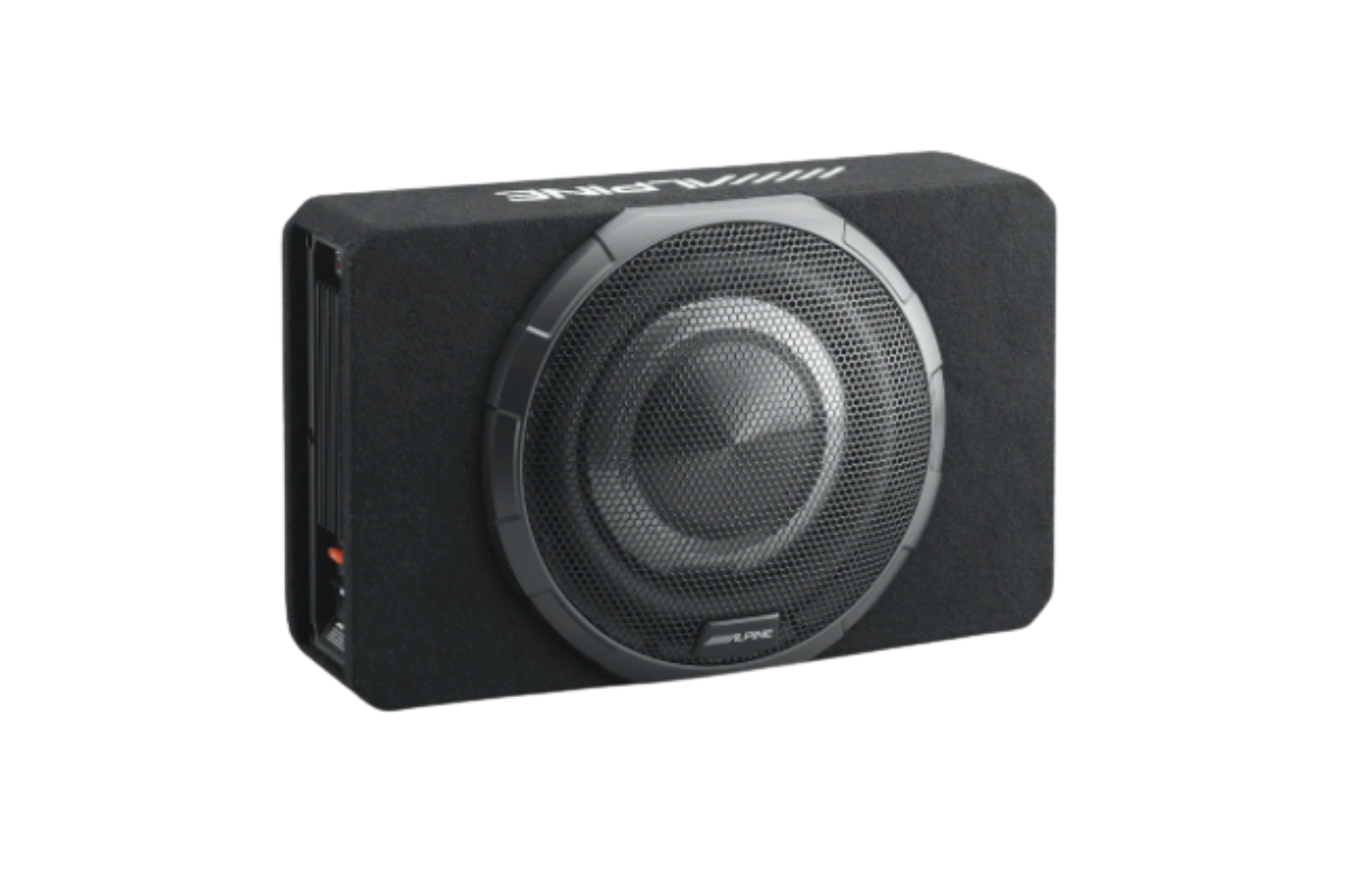

ALPINE PWV-SB10 BassRev 10″ Slim-Line Powered Subwoofer

Born from Alpine’s decades of acoustic expertise, BassRev™ delivers controlled, high-impact bass while preserving Alpine’s signature clarity.

At its core is OPTIM™Sync, Alpine’s proprietary bass algorithm, preloaded in the DSP amplifier for BassRev subwoofers and accessible via the OPTIM™8 DSP Amplifier. OPTIM™Sync applies dynamic bass boost and component-specific pre-EQ to safely extend low-end performance and smooth tone, unlocking the full potential of every BassRev component.

The result: bold, immersive bass that hits harder where it counts—yet stays precise and controlled.

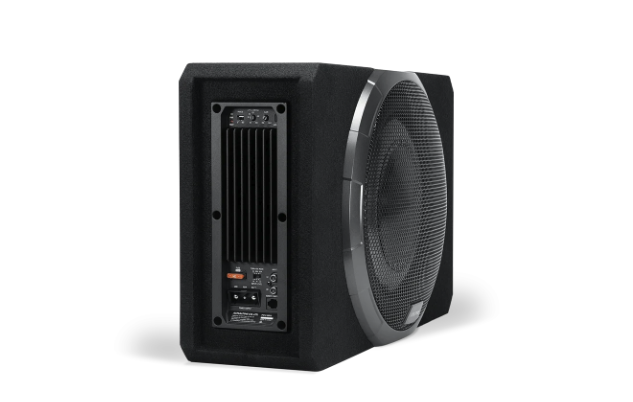

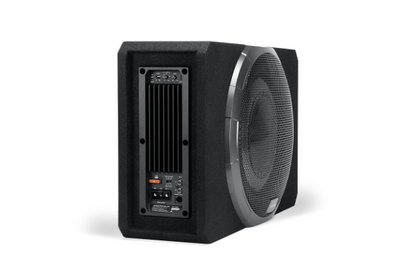

Integrated Class-D Amplifier

Built-in high-efficiency Class-D amplifier with Phase Control, Low-Pass Filter, Gain Adjustment, Turn-On Mode Selection, and Hi-Level & RCA inputs. A plug-type adaptor ensures secure power connection.

Premium MDF Enclosure

The PWV-SB10 features a robust, double-braced MDF enclosure to minimise vibration. An extended grille protects the woofer from cargo, pets, and daily wear, while the Alpine-embroidered finish keeps it looking premium.

X-Max Bass Performance

Durable, ultra-wide rubber surround allows maximum linear cone excursion, delivering high SPL output while maintaining distortion-free, precise bass.

Seamless System Integration

Designed for easy integration with both factory and aftermarket systems, the PWV-SB10 upgrades low-frequency performance while keeping a clean, factory-style interior look.

Features

• Preloaded 10″ BassRev™ Subwoofer
• Built-in 400W RMS Amplifier & DSP with OPTIM™Sync Technology
• Alpine Proprietary OPTIM™Sync Algorithm for added Dynamic Bass Boost Performance
• Shallow Enclosure for Flexible Fitment
• Sealed Design that Emphasises Low-end Punch and Feel
• Engineered to Compete with Full Size Enclosures (delivers full-size sub impact)
• Carpeted MDF Enclosure w/Double Brace Structure
• Alpine Embroidered Top
• Extended Grille Design

Specifications

• RMS Power Handling: 400W
• Peak Power Handling: 800W
• Nominal Impedance: 2ohms (4ohms+4ohms)
• Frequency Response: 31Hz-200Hz
• Phase Control: 0° / 180°
• Voice Coil: dual 4Ω voice coils (4 Ω + 4 Ω)
• Low-Pass Filter: 50–200 Hz, −24 dB/octave (variable)
• Inputs: High-level (0.5–10 V) and RCA (0.2–2.0 V)
• Mounting Dimensions: 470mm (W) x 283mm (H) x 127mm (D)
• Weight: 9.7kg
