HELIX M ONE X 24V - 1 Channel Digital Amplifier w/ TwinPower Link 24V | 1Ω Stable
HELIX M ONE X 24V - 1 Channel Digital Amplifier w/ TwinPower Link 24V | 1Ω Stable
M ONE X 24 Volt
Couldn't load pickup availability
Sorry, it's out of stock.
But we can let you know when it's back in.
Question about this product?
We're happy to help.

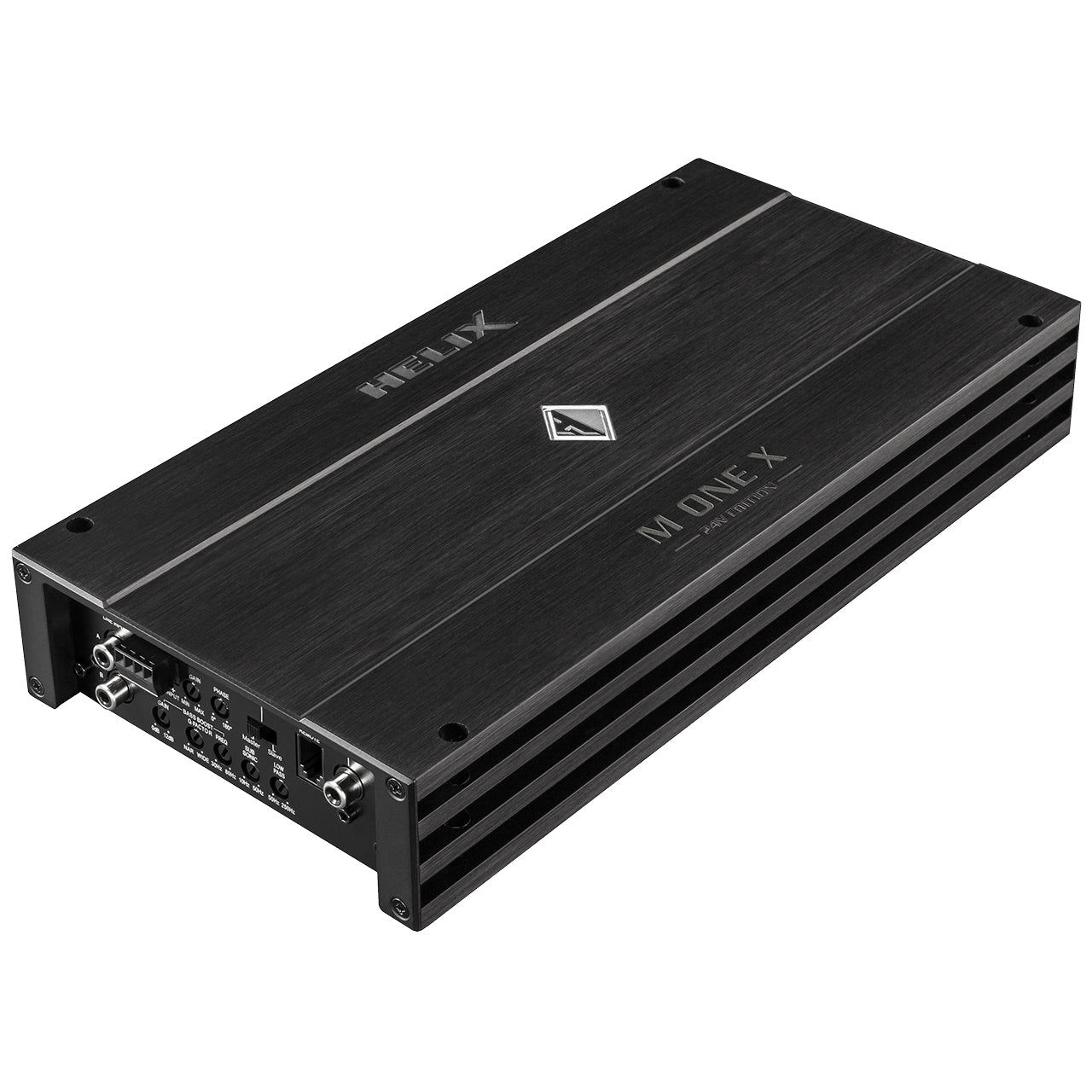

Small, efficient and uncompromisingly stable – the M ONE X – 24V Edition is a highly compact monoblock for subwoofer applications. Designed from latest Class D technology this tiny amp can easily control speakers with 1 Ohm impedance. Its current capability makes the M ONE X – 24V Edition a perfect partner for 2 x 2 Ohms subwoofers, where both voice coils are connected in parallel. And for even more output power, two M ONE X – 24V Edition amplifiers can be combined to one single powerhouse – thanks to the TwinPower Link.
Features
- Small footprint Class D amplifier with up to 1,180 Watts RMS output power @ 1 Ohm for easiest combination with all 2 x 2 Ohms subwoofers connected in parallel
- Start-stop capability down to 12V supply voltage
- Smart high-level input with ADEP circuit and Auto Turn-On function
- Integrated, active crossover with lowpass, bass boost, subsonic and phase control
- TwinPower Link for connecting two amplifiers in bridged mode
- Bass remote control for volume adjustment
- Low heat dissipation thanks to extraordinary efficiency
Product parameters
- Channels: 1 Channel | Mono
- Built-in DSP: No
- RCA Input: 2x RCA
- High-Level Input: 2x High level
- Power W RMS/ch | 4Ω: 400
- Power W RMS/ch | 2Ω: 700
- Power W RMS/ch | 1Ω: 1030
- Class: D
- Max Input Sensitivity (V): 13
- THD+N | %: 0.2
- Operational Voltage:
- RCA Out: 0x | No Pre-out
- Product Depth | mm: 154
- Product Width | mm: 320
- Product Height | mm: 50
Additional Features
Smart high level input
The latest generation of OE car radios incorporates sophisticated possibilities of diagnosing the connected speakers. If a common amplifier will be hooked up failure messages and loss of specific features (e.g. fader function) quite often appear - but not with the M ONE X - 24V Edition.
The new ADEP circuit (Advanced Diagnostics Error Protection) avoids all these problems without loading the speaker outputs of the OE radio during high volumes unnecessarily.
Start-Stop capability
The switched power supply of the HELIX M ONE X - 24V Edition assures operation even if the battery’s voltage drops down to 12 Volts during engine crank.
Specifications
| Power RMS ≤ 1% THD+N |
Normal operation (One amplifier) |
TwinPower Link (Two amplifiers) |
| - @ 4 Ohms | 1 x 400 Watts | 1 x 1,400 Watts |
| - @ 2 Ohms | 1 x 700 Watts | 1 x 2,060 Watts |
| - @ 1 Ohm | 1 x 1,030 Watts | - |
| - bridged @ 4 Ohms | - | - |
| - bridged @ 2 Ohms | - | - |
| Max. output power per channel*: | Up to 1,180 Watts RMS @ 1 Ohm | |
| Amplifier technology | Class D | |

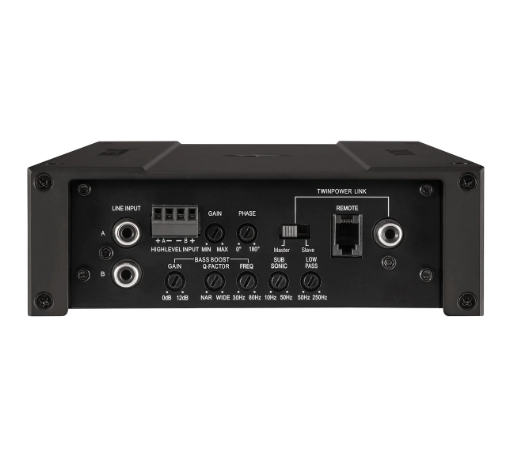

| Inputs | 2 x RCA / Cinch 2 x high-level speaker input 1 x Remote In 1 x Remote control input |
|
| Input sensitivity | RCA / Cinch 0.5 - 6 Volts High level 1.1 - 13 Volts |
|
| Input impedance RCA / Cinch | 20 kOhms | |
| Input impedance high level | 9 - 33 Ohms | |
| Outputs | 1 x Speaker output | |
| Output voltage RCA / Cinch | - | |
| Signal converter for digital input | - | |
| Frequency response | 10 Hz - 250 Hz | |
| Bass boost | 0 - 12 dB / 30 - 80 Hz | |
| Highpass | - | |
| Lowpass | 50 Hz - 250 Hz adjustable | |
| Bandpass | 10 Hz - 250 Hz adjustable | |
| Subsonic | 10 Hz - 50 Hz adjustable | |
| Phase | 0 - 180° adjustable | |
| Slope high- / lowpass | - | |
| Slope subsonic / lowpass | 12 / 24 dB/Oct. | |
| Signal-to-noise ratio digital input | - | |
| Signal-to-noise ratio analog input | 95 dB (A-weighted) | |
| Distortion (THD) | 0.20 % | |
| Damping factor | 150 | |
| Operating voltage | 18 - 36 Volts (max. 5 sec. down to 12 Volts) | |
| Idle current | 400 mA | |
| Operating temperature range | -40° C to +70° C | |

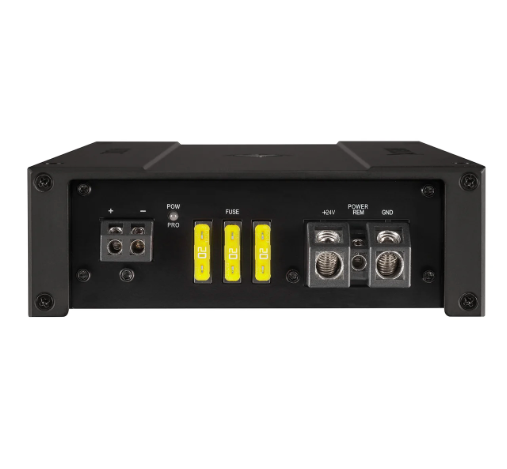

| Fuse | 3 x 20 A Maxi-fuse (APX) | |
| Power rating | DC 24 V ⎓ 53 A max. | |
| Additional features | Active, adjustable crossover, bass boost, phase shift, Start-Stop capability, highlevel input with automatic turn on function and Advanced Diagnostics Error Protection (ADEP), bass volume cable remote control | |
| Dimensions (H x W x D) | 50 x 320 x 154 mm / 2.00 x 12.60 x 6.06” |
|
* In typical applications as subwoofer amplifier
What's included
- 1 x Amplifier HELIX M ONE X – 24V Edition
- 1 x Cable remote control
- 1 x Mounting material
- 1 x Instruction manual
