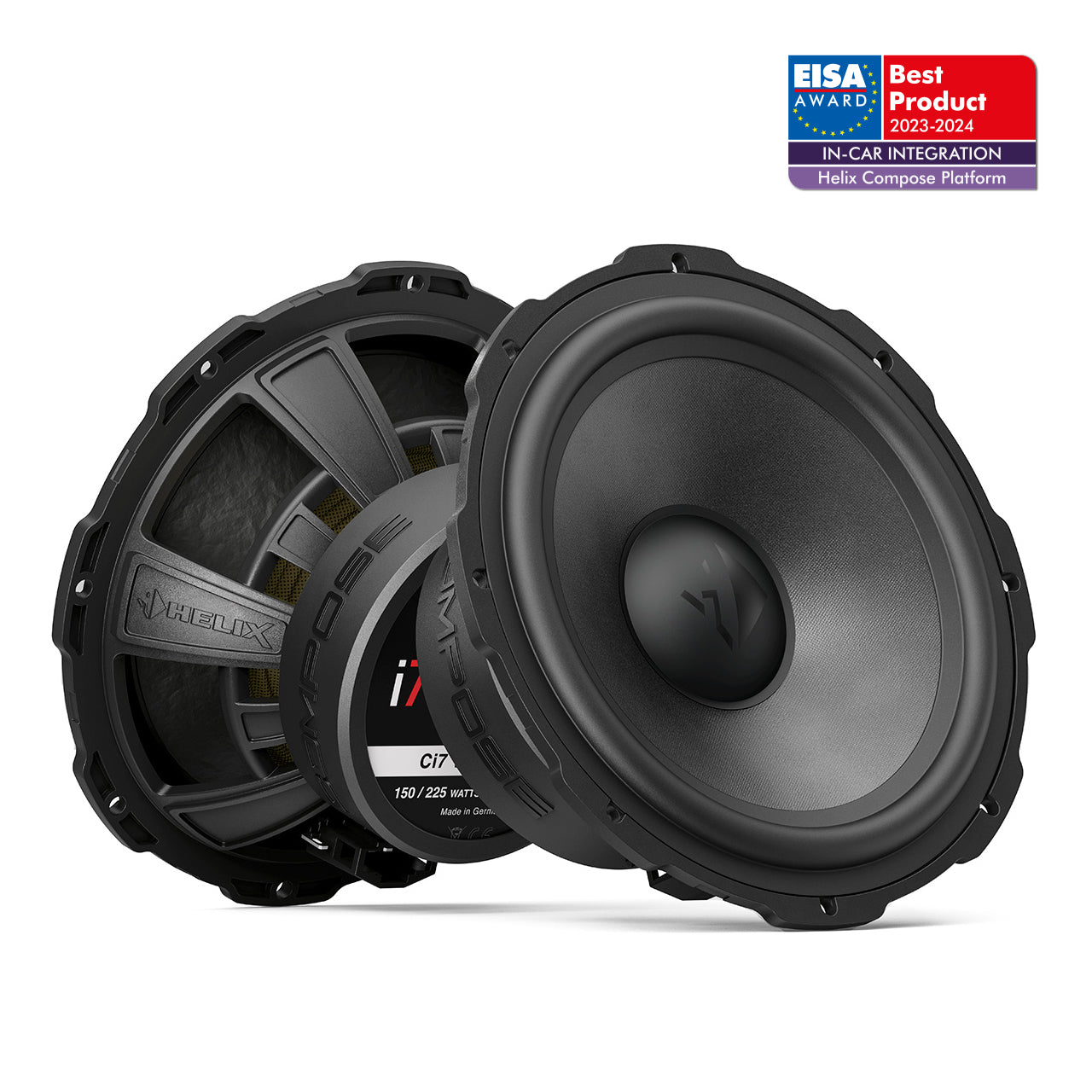

HELIX Ci7 W165FM-S3 - 6.5" Hi-End Midrange Woofer Pair, FlexMount | 3Ω
HELIX Ci7 W165FM-S3 - 6.5" Hi-End Midrange Woofer Pair, FlexMount | 3Ω
COMPOSE Ci7 W165FM-S3
Couldn't load pickup availability
Question about this product?
We're happy to help.
HELIX COMPOSE. The perfect speaker for any composition.
Born out of the increasingly demanding challenges of modern automobile technology and the HELIX-typical pursuit of intelligent solutions, we made the progressive redesign of proven universal speaker systems our mission. The result: our innovative HELIX COMPOSE platform that, according to the motto "developed inside the vehicle, for the vehicle", combines classic universal speakers with the advantages of vehicle-specific systems. Innovative materials and the latest technologies paired with smart, practical engineering - the best of both worlds in harmony: high efficiency, fantastic sound quality and enormous dynamics that fit in any vehicle. HELIX COMPOSE - universal speakers evolved.
Read more info here.
Features
- 6.5” / 165 mm high-end midbass which combines outstanding sound performance with versatile physical integration options
- High efficiency and 3 Ohms technology for maximised power output of the amplifier
- Ultra High Damping (UHD) crafted paper cone for outstanding impulse response and unmatched frequency response
- High-tech polymer composite basket reinforced with glass beads for enormous rigidity and minimised ringing
- Specially shaped rubber surround for high linear cone excursion
- Polyurethane dustcap for optimised frequency response in the upper midrange area
- Large 1.46” / 37 mm voice coil ensures minimum thermal compression and high power handling
- Automotive grade ProConnect connection terminal allows the use of conventional speaker cables or a fast, secure and fail-safe connection via optionally available WireKits
- Powerful magnet system for highest efficiency and extremely low distortion
- Designed for the optionally available car-specific FlexMount165 adaptors which allow an acoustically optimised and professional integration in the original mounting location of the vehicle
- Designed for optionally available, car-specific WireKits which allow a non-destructive integration
- Made in Germany
Product parameters
- Size: 165mm | 6.5"
- Driver Power | Watts RMS: 150
- Voice Coil x Impedance: 1 x 3Ω
- Type: Woofer
- Sensitivity 2.83V/1m | dB: 92
- Installation Depth | mm: 66
Specifications
| Power handling RMS / max. | P |
150 / 225 Watts |
| Impedance | Z | 3 Ω |
| DC resistance | Re | 2.9 Ω |
| Frequency response | 50 Hz - 3,500 Hz | |
| Resonance frequency | Fs | 60 Hz |
| Mechanical Q factor | Qms | 3.00 |
| Electrical Q factor | Qes | 0.68 |
| Total Q factor | Qts | 0.55 |
| Compliance | Cms | 480 µm/N |
| Equivalent air volume | Vas | 11.6 L |
| Force factor | B*I | 4.8 Tm |
| Sensitivity | SPL | 92 dB @ 2.83 V / 1m 88 dB @ 1W / 1m |
| Cone area | Sd | 131 cm² |
| Moving mass | Mms | 14.8 g |
| Cone material | Ultra-high damping (UHD) crafted paper cone | |
| Mechanical resistance | Rms | 1.83 kg/s |
| Voice coil diameter | ø | 37 mm |
| Voice coil winding height | 13.4 mm | |
| Max. linear excursion | Xmax | +/- 3.7 mm |
| Outer diameter | ø | 165 mm / 6.5" |
| Installation diameter | ø | 142 mm / 5.59" |
| Installation depth | 65.8 mm / 2.59" | |
| Features | ProConnect terminal, FlexMount165 |
Compatibility
- FlexMount165
- WireKits
What's included+
- 2 x Ci7 W165FM-S3
- 2 x Connection cable
- 2 x Mounting material
